Description

Loved by farmers all over S.A.! Our orange sprinklers are one of a kind, and hailed by many as the only sprinklers you'll ever need!

Workhouse, super powerful yet super affordable sprinkler heads that will help you increase your yield.

Our orange sprinkler heads are our most popular range by far, but our discounted sprinkler heads have proven themselves to work, work, work! Get them now, limited quantities are available!

1610SK Low Flow 12m – 12,8m Radius Sprinkler Heads

Flourish, bloom and enjoy a fruitful harvest this season.

This durable, powerful sprinkler can ensure your fruitful harvest this season. Not only are these orange sprinkler heads highly visible in a field, but orange is also known as the second most UV-resistant colour for sprinklers, making them more durable than other plastic sprinkler heads.

Features:
• Highly durable, UV-Resistant sprinkler design
• Stainless-Steel spring ensures even distribution and high coverage
• Easily changeable nozzles in different flow rates, able to perform at most pressure rates
• Slow and fast circle speed
• Smooth linear shot
• Teflon bearing provides easy and continuous rotation
• Cyclone-shape, small particle “rain-like” distribution due to specialised design inside nozzle grooves and water-spreading pins

Specifications:
• Working Pressure 2 BAR – 3 BAR
• Preinstalled nozzles: 3,8mm x 5,0mm
• Additional nozzles per sprinkler: 2,3mm; 4,5mm; 6,0mm
• Sprinkler radius: 12m – 12,8m
• Flow: 1050 l/h – 1300 l/h



1615K Low Flow 11m – 12,75m Radius ‘Baby’ Sprinkler Heads

Features:
• Highly durable, UV-Resistant sprinkler design
• Stainless-Steel spring ensures even distribution and high coverage
• Easily changeable nozzles in different flow rates, able to perform at most pressure rates
• Slow and fast circle speed
• Smooth linear shot
• Teflon bearing provides easy and continuous rotation
• Cyclone-shape, small particle “rain-like” distribution due to specialised design inside nozzle grooves and water-spreading pins

Specifications:
• Working Pressure 2 BAR – 3 BAR
• Preinstalled nozzles: 2,5mm x 3,5mm
• Additional nozzles per sprinkler: 1,8mm; 2,1mm; 2,8mm; 3,2mm
• Sprinkler radius: 11m – 12,75m
• Flow: 510 ?/h – 1240 ?/h

Please note that data used in technical tables is determined by the adjusted pressure on a 65mm riser from ground level.

1610S High Flow 13m – 17m Radius Sprinkler Heads

 Highly durable, UV-Resistant sprinkler design
- Stainless-Steel spring ensures even distribution and high coverage
- Easily changeable nozzles in different flow rates, able to perform at most pressure rates
- Slow and fast circle speed
- Smooth linear shot
- Teflon bearing provides easy and continuous rotation
- Cyclone-shape, small particle “rain-like” distribution due to specialised design inside nozzle grooves and water-spreading pins

Specifications:
- Working Pressure 2 BAR – 3 BAR
- Preinstalled nozzles: 4,0mm x 5,0mm
- Additional nozzles per sprinkler: 3,5mm; 4,5mm; 5,5mm; 6,0mm
- Sprinkler radius: 13m – 17m
- Flow: 1890 ?/h – 3140 ?/h

Please note that data used in technical tables is determined by the adjusted pressure on a 65mm riser from ground level.

1610SK High Flow 13m – 17m Radius Sprinkler Heads

Features:

• Highly durable, UV-Resistant sprinkler design
• Stainless-Steel spring ensures even distribution and high coverage
• Easily changeable nozzles in different flow rates, able to perform at most pressure rates
• Slow and fast circle speed
• Smooth linear shot
• Teflon bearing provides easy and continuous rotation
• Cyclone-shape, small particle “rain-like” distribution due to specialised design inside nozzle grooves, and water-spreading pins

Specifications:
• Working Pressure 2 BAR – 3 BAR
• Preinstalled nozzles: 4,0mm x 5,0mm
• Additional nozzles per sprinkler: 3,5mm; 4,5mm; 6,0mm
• Sprinkler radius: 13m – 17m
• Flow: 1890 ?/h – 3140 ?/h

Please note that data used in technical tables is determined by the adjusted pressure on a 65mm riser from ground level.

LIMITED STOCK - Grey Sprinkler Heads from Akplas

• Features:
  - High water distribution thanks to a specialized nozzle
  - 360-degree full circular irrigation
  - Smooth linear shot
  - Stainless steel and durable plastic parts
  - High UV resistance with a specialized plastic structure
  - Easily change nozzles without tools (additional nozzles not included)

LIMITED STOCK - Yuzuak Full Circle Green Sprinkler Head ATOM15FC 22-27Degree

Features:
- 360-degree full circular irrigation
- Smooth linear shot
- High UV resistance with a specialized plastic structure
- Adjustable rotation speed
- Performs well in windy areas

Specifications:

• Water Input 1”
• Working Pressure 2 BAR – 4,5 BAR
• Water requirement 2 – 4,05 cubic metres an hour
• Nozzles 3,2mm Dark Green x 6mm Orange
• Body angle 22-27degrees
• Sprinkler radius 15 – 18m

LIMITED STOCK - Yuzuak Full Circle Green Sprinklers ATOM15LA 7-10 Degrees

Features:
- 360-degree full circular irrigation
- Smooth linear shot
- High UV resistance with a specialized plastic structure
- Sun resistant

Specifications:
- Water Input 1”
- Working Pressure 2 BAR – 4,5 BAR
- Water requirement 1,75 – 3,25 cubic metres an hour
- Nozzles 5,5mm White x 2,5 Turquoise
- Body angle 7° - 10°
- Sprinkler radius 9m – 14m

Why you need our HDPE Quick Coupling system

It goes well with everything

The system can be used to support other irrigation systems e.g. dragline, or on its own as a sprinkler system or as a mainline for water transportation - we always recommend farmers use a combo of dripline and Quick Coupling HDPE sprinkler irrigation for insane yield boosts!

They're just built different

The system consists of HDPE pipes, normally 6m lengths (Afriq Water can manufacture in various pipe lengths) which are friction-welded and sealed with a lip seal to bright orange quick coupling latch fittings, ideal for almost all topographical conditions.

Super durability, super lasting

The smooth interior ensures low friction loss, increasing efficiency. Made to last in all climate conditions, from harsh frozen winters to extremely hot summers. UV-protected and extremely durable, Southern African harsh weather conditions and direct sunlight pose no challenge for this unique product.

Super lightweight, super moveable

A line of the system can be moved and assembled single-handedly as it is made from lightweight HDPE.

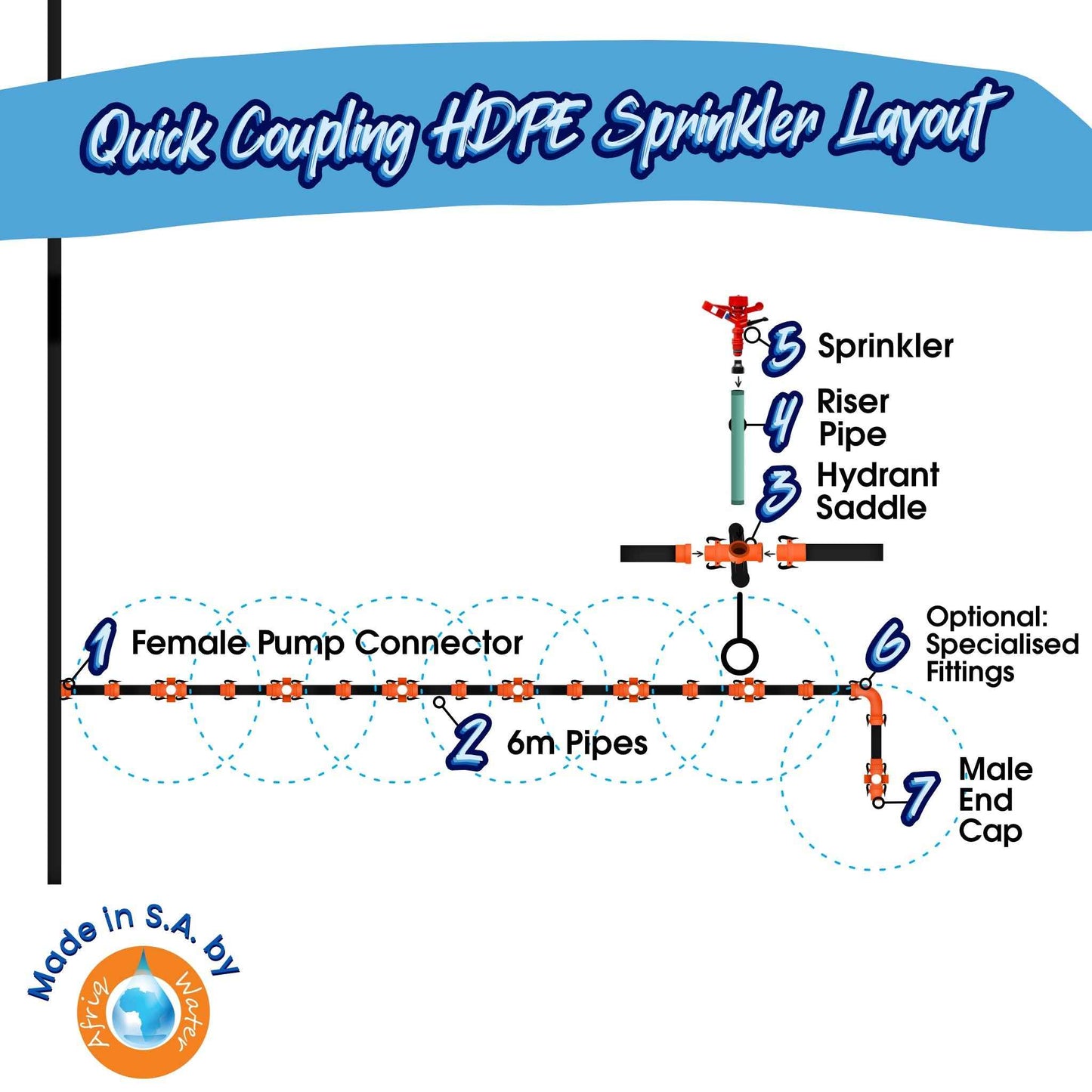

System layout / Installation

Check out our images for a full diagram! Making it easy peasy!

Step 1: Female Pump Connector

Connects to the water outlet valve in the field, to start a line of Quick Coupling pipes. Due to the lip-sealing method of this system, a female adaptor is used at the start of the line. If a male pump connector is required, it is available but know that it's not how this system is made to be used.

Step 2: HPDE 6m Quick Coupling Pipes

6m HDPE Pipes with male and female fittings on either side of the pipe, friction-welded on. Various pipe sizes are available, determined by the flow rate. Two pipes of 6m are used between each hydrant set, to get to 12m.

Step 3: Hydrant / Saddle

A foot piece that latches onto the pipes. The riser pipe is screwed into the top. This piece keeps the sprinkler system itself upright and stable. All Sprinkler Riser Coupling diameters have a 25mm outlet on top.

Step 4: Riser Pipes

Screwed into the top of the hydrant, this pipe determines how high above your crop your sprinkler will spray.

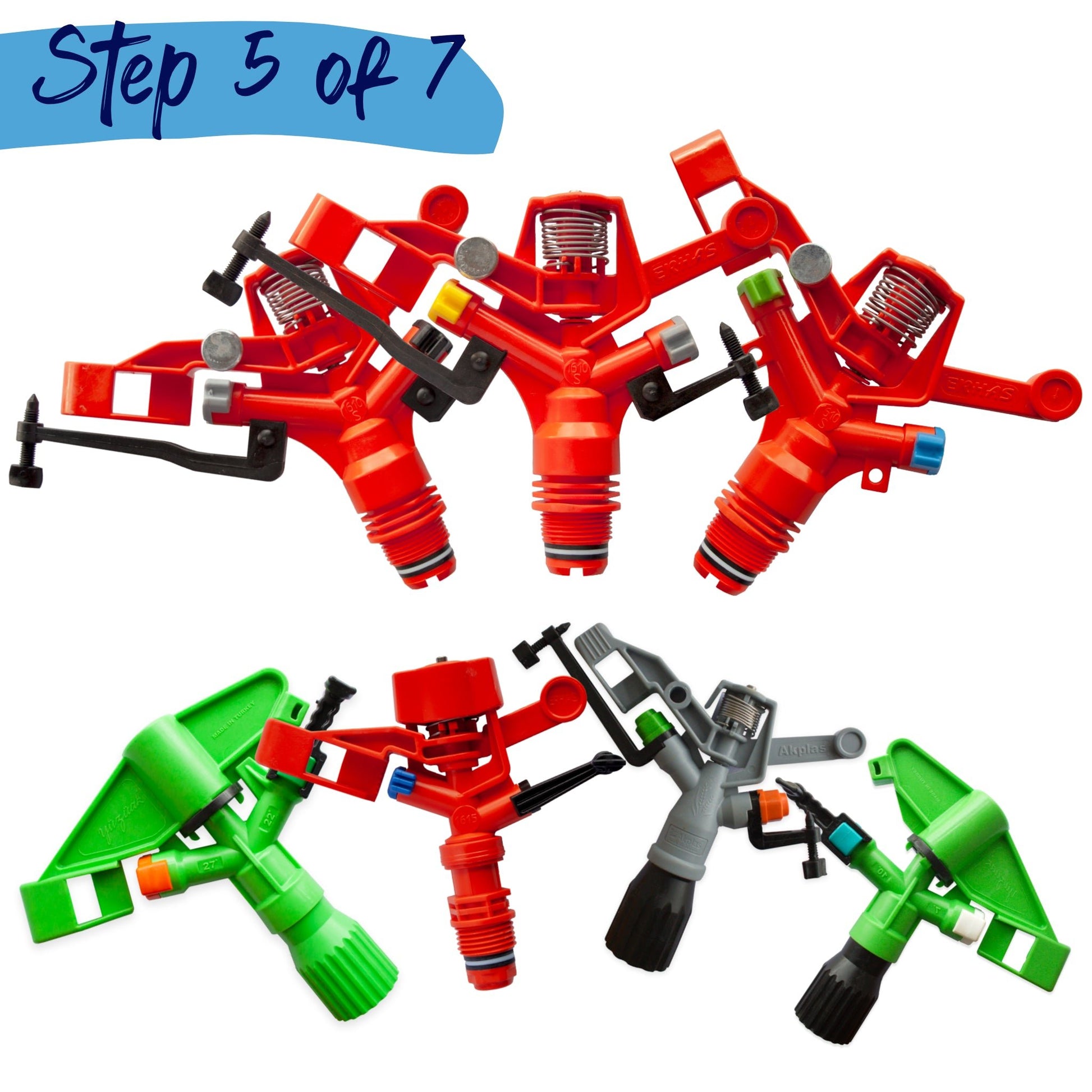

Step 5: Sprinkler Heads - Find on our shop!

Available on our shop is one of the most popular sprinkler ranges in S.A. - for good reason! Tried and proven!

Optional Step 6: Specialised Fittings

Sometimes, depending on the design, Tee’s, Reducers, Crosses, etc., all specialised fittings, are required.

Step 7: Male End Caps

Used to end the line of Quick Coupling. Due to the lip-sealing method of this system, a male end cap is used at the end of the line. If a female end  cap is required, it is available but know that it's not how this system is made to be used.

Hectare Layout Options

Check out our images for a full diagram! Making it easy peasy!

We also have a bundle deal up in the same range, where you can choose how many lines of each diameter you'd want for a 100m length :)

How many 5.8m pipe lengths do you need?

• Pipe Lengths Required Per Row (X in this example) = Length of Row ÷ Length of Pipes
• X = 165 (example only) ÷ 5.8 (our standard pipe length for courier)
• X = 28.4 Pipe Lengths
• X = 28 Pipe Lengths (round down to the nearest even number, since your sprinkler will cover the distance that your last 5.8m pipe would have reached)

How many sprinkler sets do you need based on pipe lengths?

• Sprinkler Sets Required Per Row (Y in this example) = Pipes ÷ 2
• Y  = 28 (as in example above) ÷ 2
• Y = 16 Sprinkler Sets

How many sprinkler rows do you need?

• Sprinkler Rows Required (Z in this example) = Width of field ÷ 12 (industry standard for sprinkler radius)
• Z = 115 (as an example) ÷ 12
• Z = 9.58 Rows
• Z = You can either choose 9 Rows (and then space them further apart to cover gap) or 10 Rows (and then space them closer together for efficient overlay)

What Pipe Diameter do you need?

• Riser Pipe Heights 10mm to 500mm - We recommend a 50mm Dia. Pipe
• Riser Pipe Heights 400mm to 750mm - We recommend a 63mm Dia. Pipe
• Riser Pipe Heights 600mm to 1000mm - We recommend a 75mm Dia. Pipe
• Riser Pipe Heights 750mm to 1200mm - We recommend a 90mm, 100mm and 120mm Dia. Pipe
