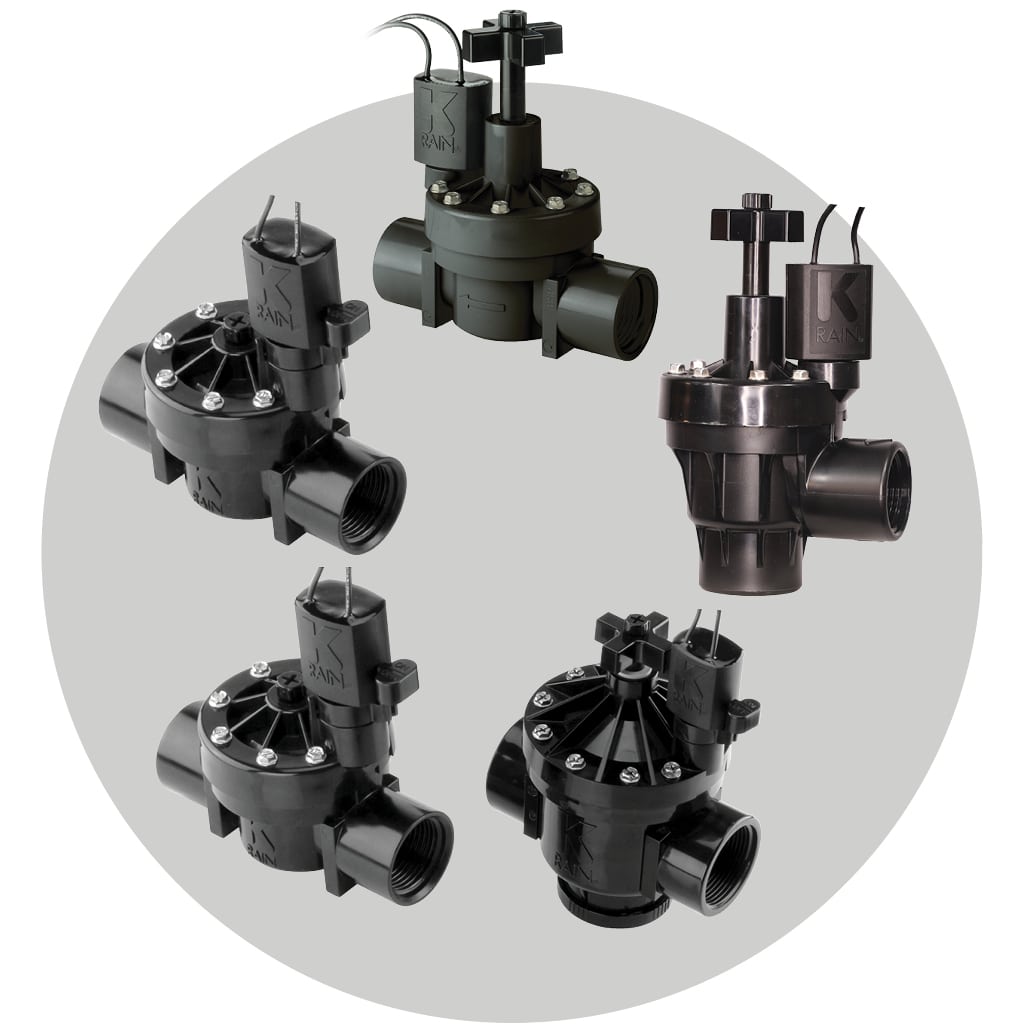

K-Rain Irrigation Electric PRO Series 150 Valves Various Sizes

Description

The perfect choice for residential and commercial use

Reliable with a straight-through flow pattern.

Dramatically reduces pressure loss and reduce the risk of trapped debris that causes other brands to fail. It has both an internal bleed and an external bleed in addition to optional flow control.

This model is adjustable from 0.38 - 17.03 litres per minute.

Features & Benefits

• Heavy Duty, Corrosion and UV Resistant PVC Construction – Increases the life of the valve.
• Manual External Bleed Screw – Provides for manual operation in system startup.
• Manual Internal Bleed through Solenoid – Provides for manual operation without discharging water outside the valve.
• Captured Plunger – Allows for the solenoid to be removed without losing the internal plunger.
• Flow Control Option – Allows for precise flow adjustment.

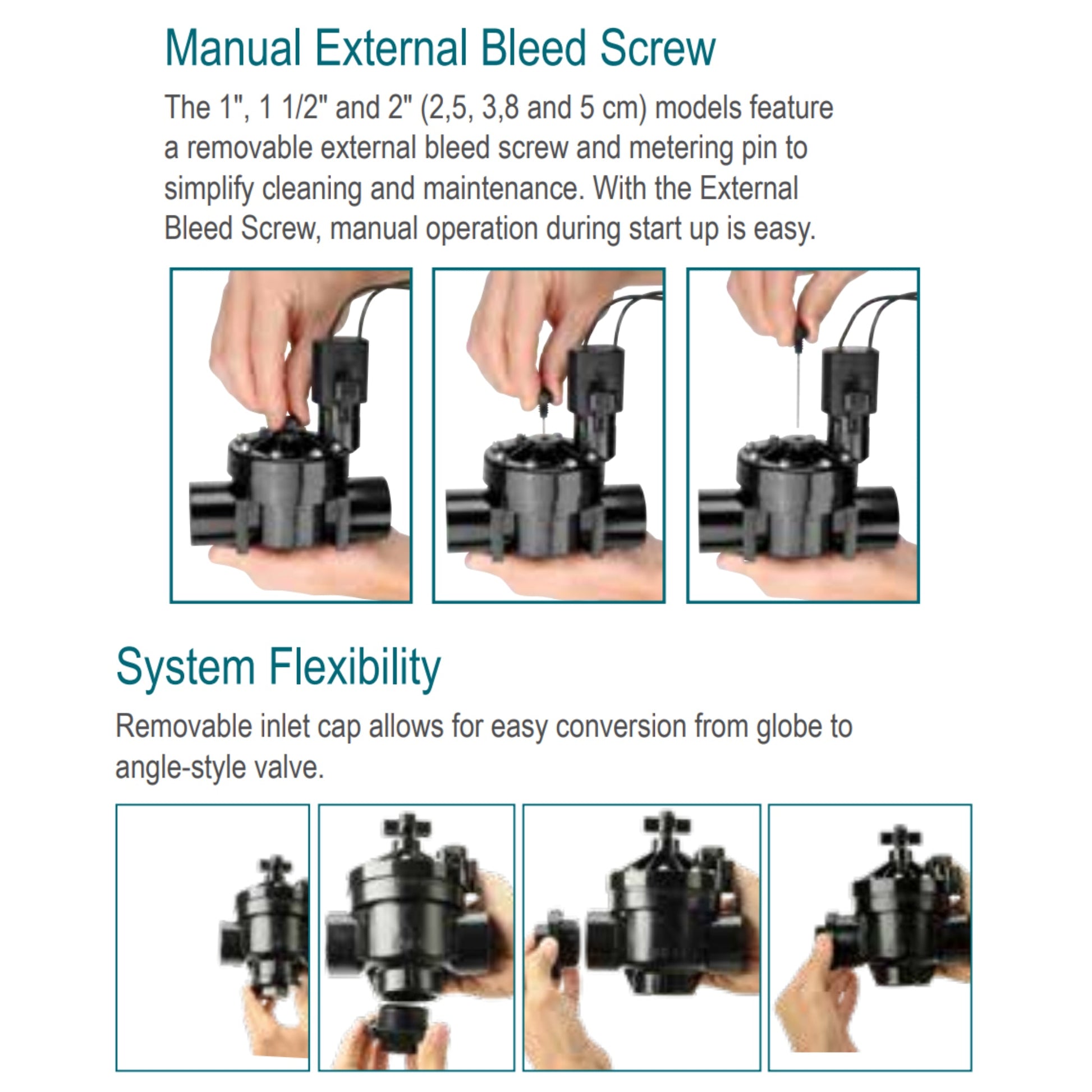

• External Bleed Screw with Removable Metering Pin – Allows for easy cleaning of the metering pin without disassembling the valve.

1 ½" and 2" Models

• Removable Inlet Cap – Allows for easy conversion from globe to angle-style valve.
• Heavy Duty Santoprene® Diaphragm – Unique design improves durability of diaphragm.

Performance Data

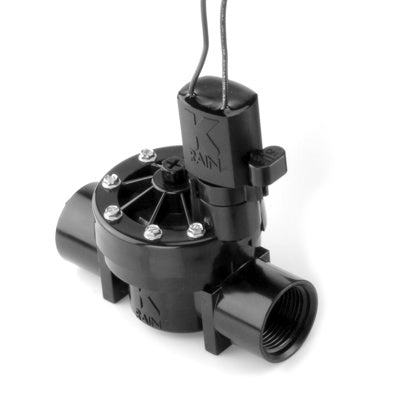

1" Valve

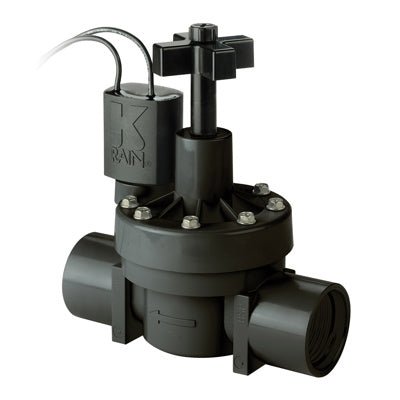

1" Flow Control Valve

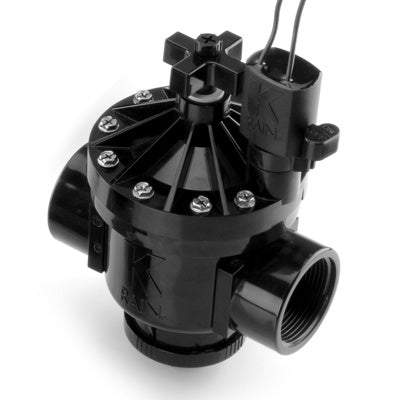

1 ½" Valve

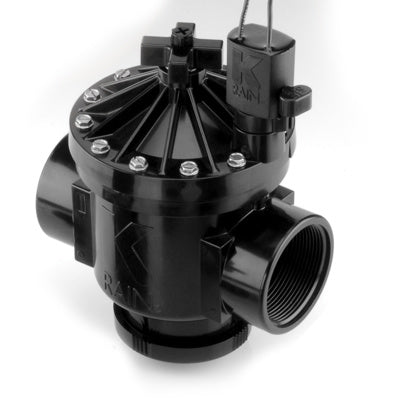

2" Valve

Electrical Specifications

• Solenoid 24 VAC 60 Cycle
• Inrush Current .43 Amps
• Holding Current .25 Amps

Dimensions

1" Valve

• Height – 13.3 cm
• Width – 7.95 cm
• Length – 12.7 cm

1" with Flow Control Valve

• Height – 14.9 cm
• Width – 7.95 cm
• Length – 12.7 cm

1 ½" Valve

• Height – 20.3 cm
• Width – 10.8 cm
• Length – 14 cm

2" Valve

• Height – 22.6 cm
• Width – 12.4 cm
• Length – 16.1 cm
