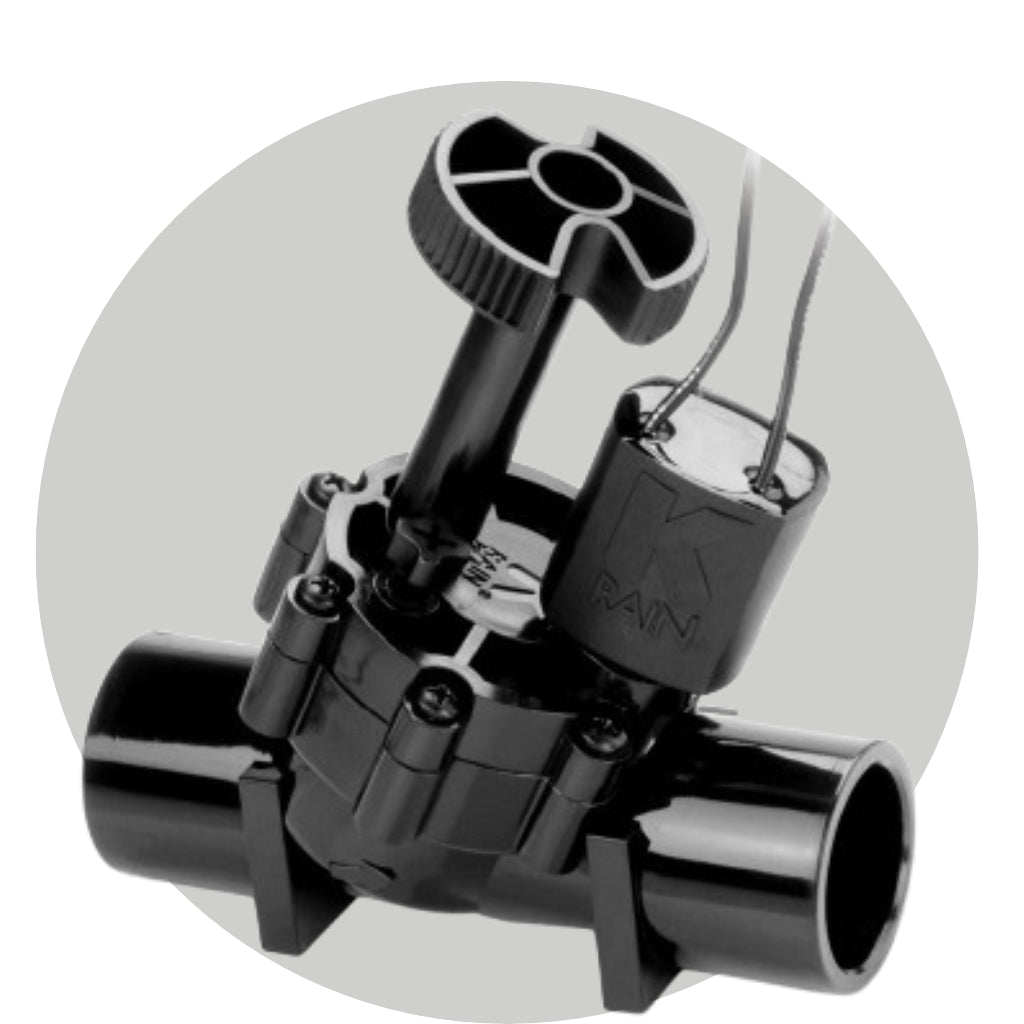

K-Rain Irrigation Electric PRO Series 100 | 1" 25mm Valve

Video

Description

The perfect choice for residential and commercial use

Reliable with a straight-through flow pattern.

Dramatically reduces pressure loss and reduce the risk of trapped debris that causes other brands to fail. It has both an internal bleed and an external bleed in addition to optional flow control.

This model is adjustable from 0.38 - 17.03 litres per minute.

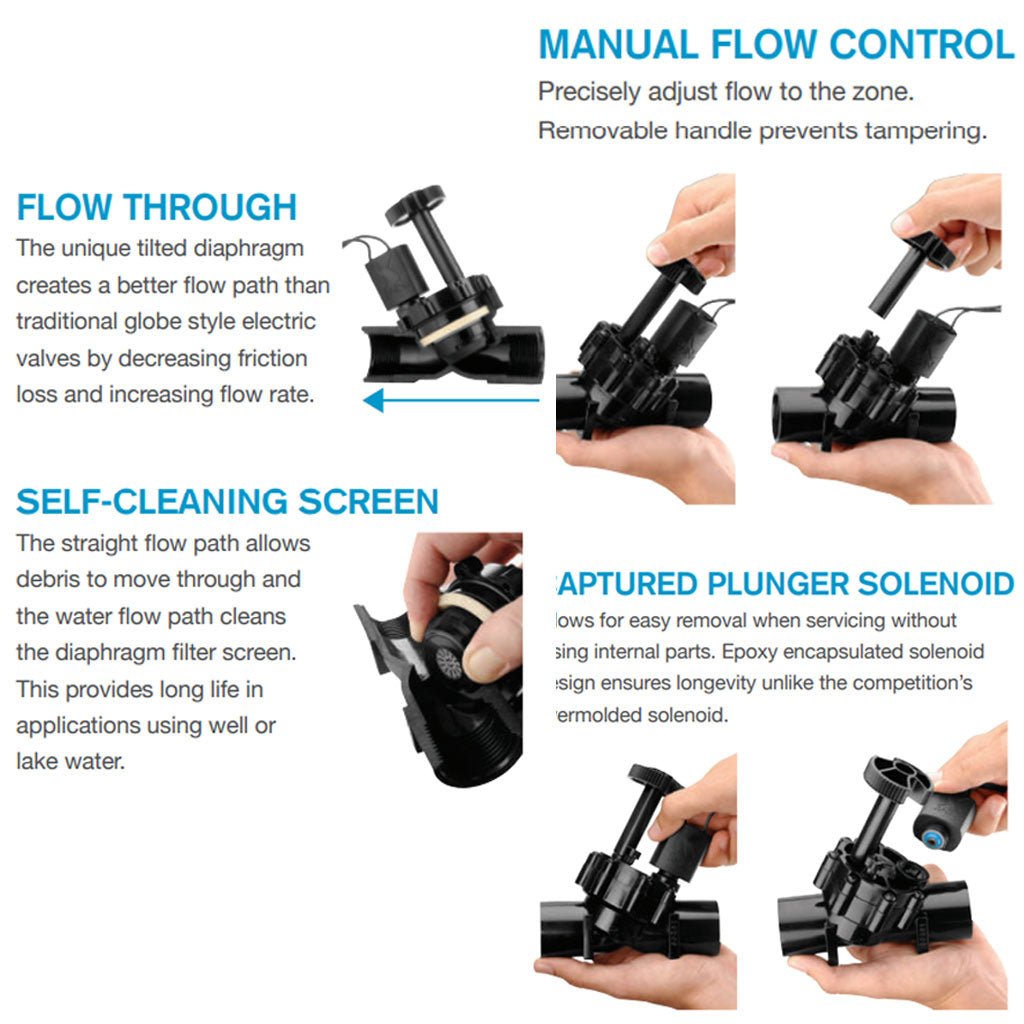

Features & Benefits

• Flow Through – The unique tilted diaphragm creates a better flow path than traditional globe-style electric valves by decreasing friction loss and increasing flow rate
• Self-cleaning screen – The straight flow path allows debris to move through and the water flow path cleans the diaphragm filter screen. This provides long life in applications using well or lake water.
• Manual Flow Control – Precisely adjust flow to the zone. Removable handle prevents tampering.
• Captured Plunger Solenoid – Allows for easy removal when servicing without losing internal parts. Epoxy-encapsulated solenoid design ensures longevity unlike the competition’s overmolded solenoid.
• Adjustable flow range – Offers flexibility in water delivery, ranging from 0.38 - 17.03 LPM.
• Easy installation – Quick and simple to install with minimal tools required.
• Durable construction – Made from high-quality materials to withstand outdoor conditions.
• Weather-resistant – Designed to perform reliably in various environmental conditions.
• Low maintenance – Requires minimal upkeep for long-lasting performance.

Performance Data

Pressure Range 1.4 - 10.3 BAR

Electrical Specifications

• Solenoid 24 VAC 60 Cycle
• Inrush Current .43 Amps
• Holding Current .25 Amps

Dimensions

• Height – 10.16 cm
• Width – 7.62 cm
• Length – 13.34 cm
