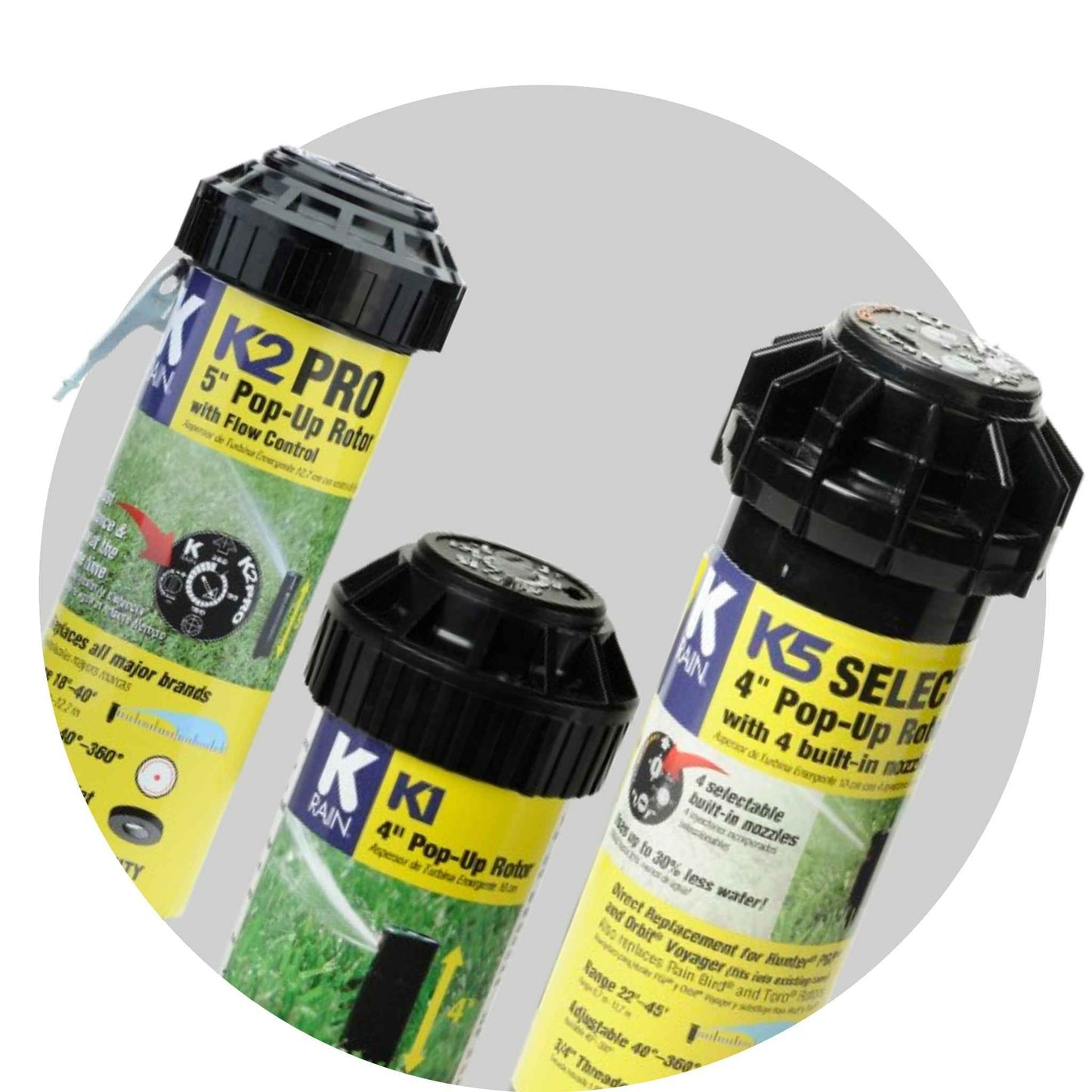

K-Rain K Range Sprayers and Gear Driven Sprinklers

K1 - Video

K1 - 31031

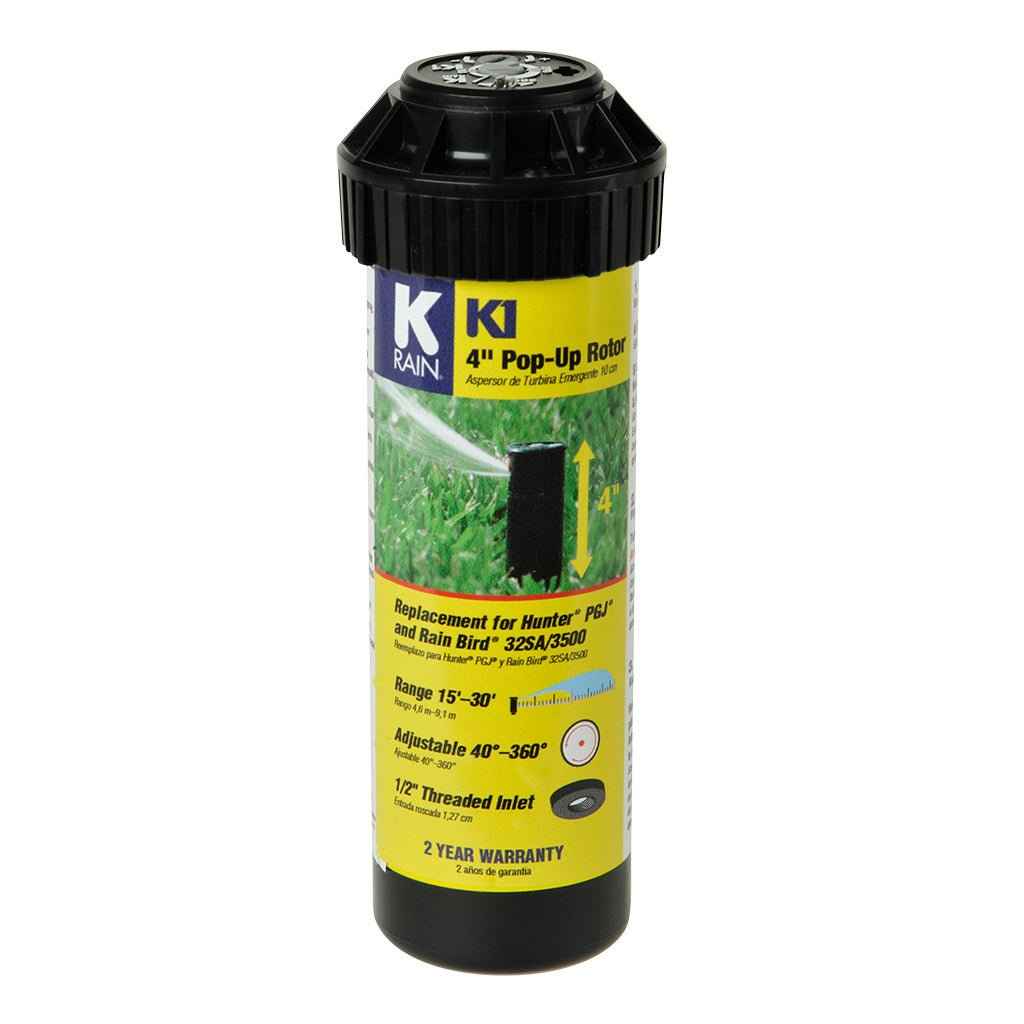

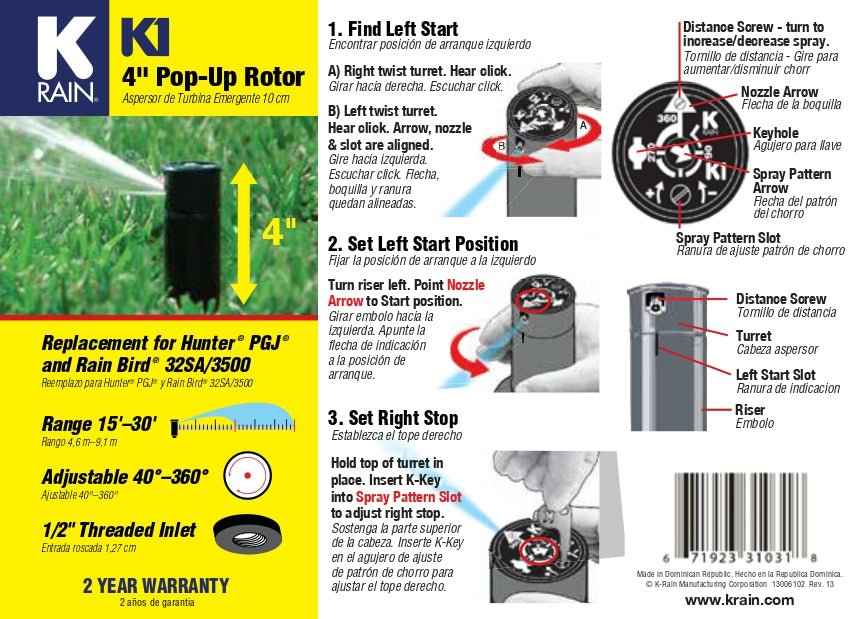

K1 Sprayer

A Gear Drive Rotor Sprinkler is a gear-driven sprinkler that delivers a quiet, yet thorough performance.

This powerful sprinkler features a 9.1 m maximum spray distance. Can provide coverage for areas up to 861.6 sq/m., ideal for small to medium size lawns.

Features

• Pop-up height – 106mm/4in
• Inlet – 12.7mm/1/2in, replaces all standard mini rotors and pop-up sprays
• Adjustment range – provides a full range of adjustment from 40–360°
• Patented easy arc set – simplified arc set allows for wet or dry adjustment in seconds

Specifications

• Spray Radius – 4.5 - 9.1m
• Inlet Thread – Female 1.3cm / 1/2" BSP
• Pop-Up Height – 4 Inch / 10cm
• Area Covered – 2.78 m2
• Distance Adjustment – Turnable screw
• Easy Arc Adjustment Range – 40 – 360°

K2 PRO Video

K2 - 10031

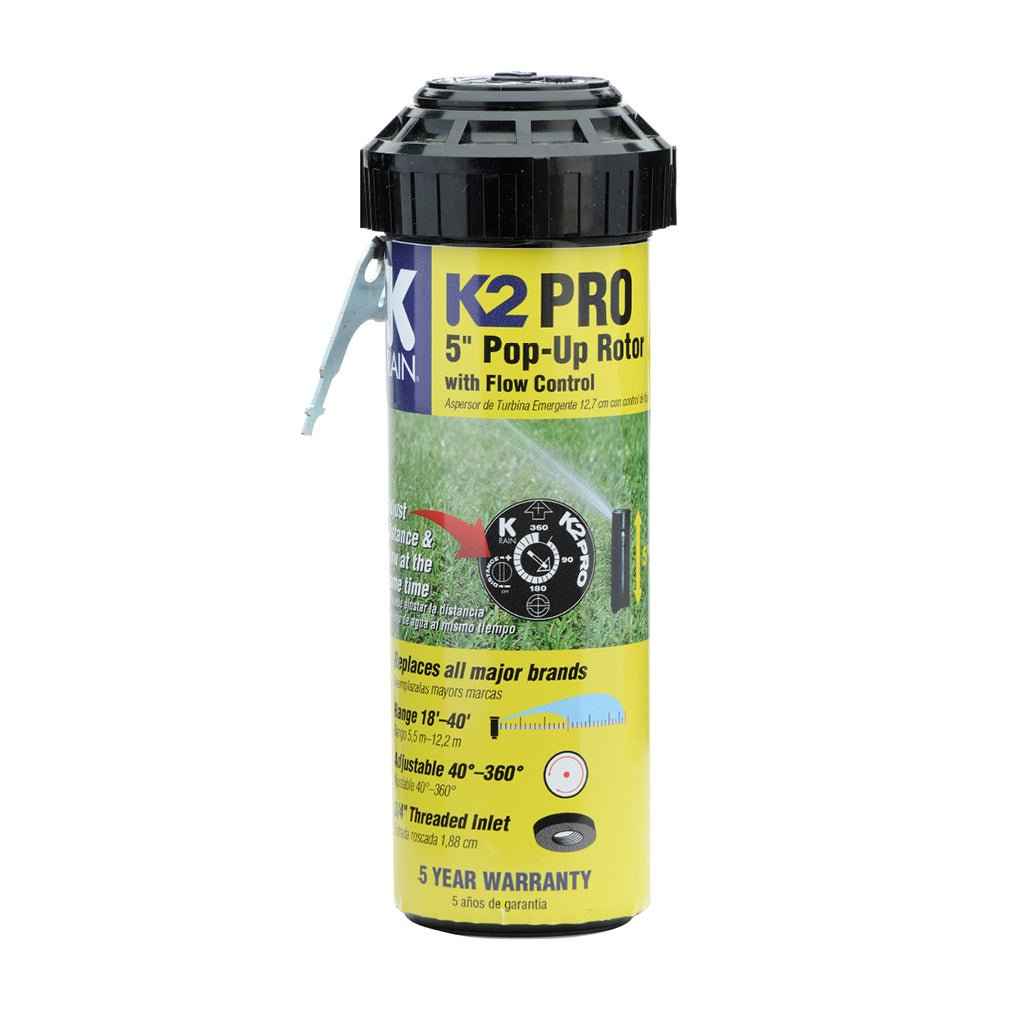

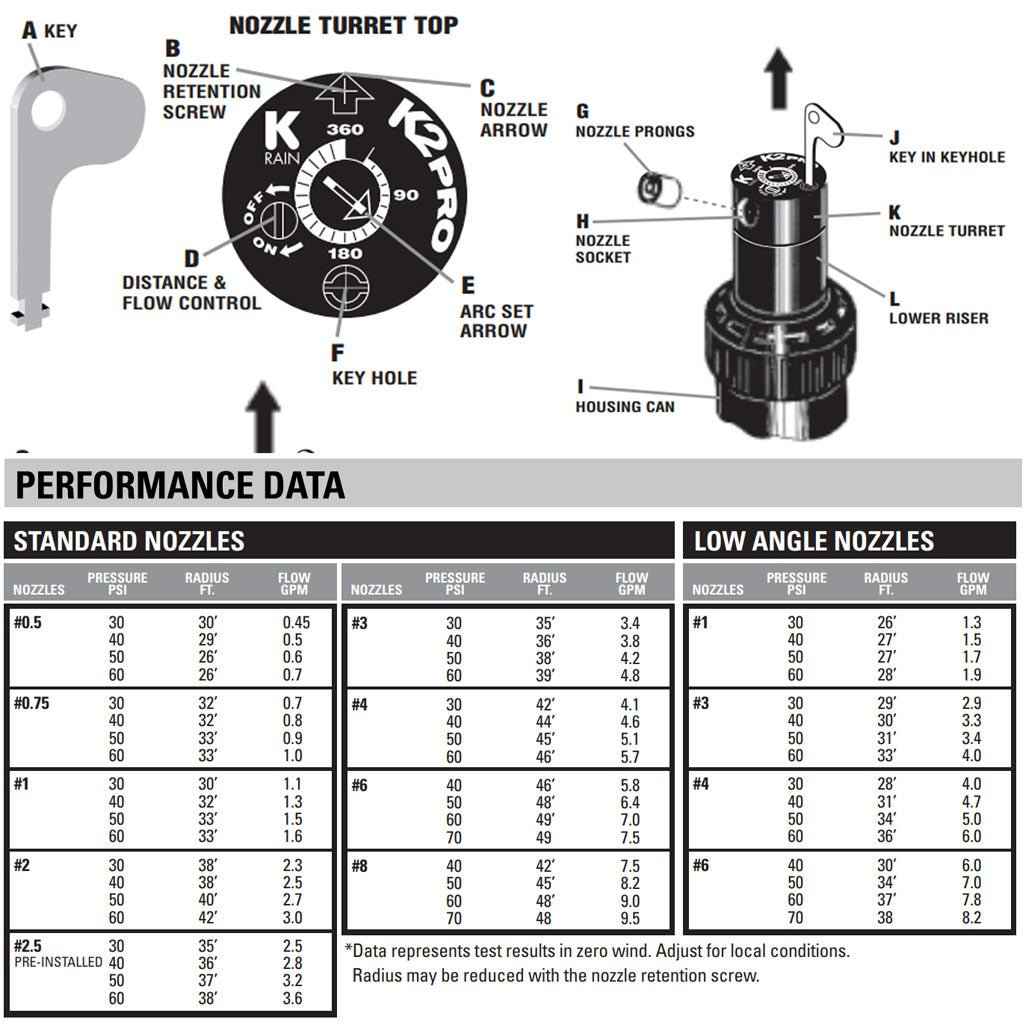

K2 Pro Rotor Pop-Up Sprinkler

Easily install and update your garden irrigation system in minutes

5 in. Pop-Up Pro Gear Drive with patented easy arc setting.

Features

• Adjustment – adjust distance and water flow at the same time
• Pop-up height – 127mm/5in
• Tamper-resistant clutch with auto-reset – prevents internal gear damage and returns rotor to its prior setting automatically

Specifications

• Spray Radius – 5.5 - 12m
• Pressure Rating – 2 - 4 BAR
• Inlet Thread – Female 1.9cm / 3/4" BSP
• Nozzles – 1 Pre-Installed
• Easy Arc Adjustment Range – 90 – 360°
• Flow Range – 4 - 42 litres p/m
• Riser Height – 12.7cm
• Recommended Spacing – 8.5 - 13.4m

K5 Video

K5 Select - 61031

K5 Select Gear Drive Rotor Sprinkler

Save water without compromising garden growth!

The K-Rain K5 Select has 4 built-in water-saving nozzles to help you reduce water consumption by up to 30%.Simply select spray pattern and corresponding water-saving nozzle for uniform watering.
The K5 Select has a patented built-in nozzle selector that makes it easy for you to choose the correct water-saving nozzle for your specific spray pattern needs. An easy arc set, with adjustability from 40 - 360°, allows you to select desired spray pattern easily with water on or off. 378.3012 sq/m. maximum coverage allows for watering medium to large areas. 4,5-18.9 LPM output on select nozzles for maximum watering efficiency.

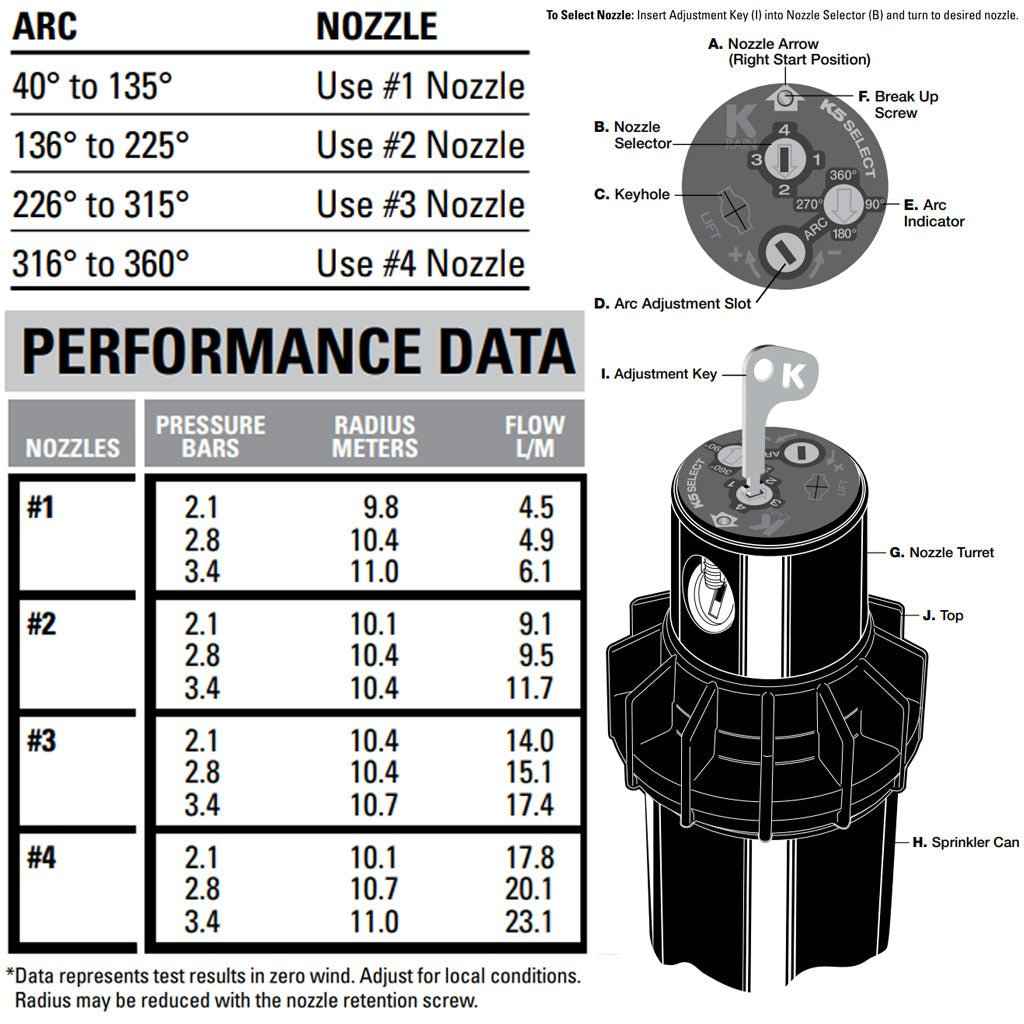

NOTE: The K5 Select is factory preset at 180° Arc with the #2 Nozzle.

Features

• Water savings – reduce water consumption by up to 30%
• Flow control – conserve water by matching the flow rate to the arc
• Spray pattern – unique spray pattern
• Nozzle selector – built into rotor sprinkler for quick and easy adjustments
• Arc adjustment – easy arc adjustments of 40 – 360°
• Watering – uniform watering


Specifications

• Spray Radius – 10 - 14m
• Pressure Rating – 2 - 3.4 BAR
• Inlet Thread – Female 1.9cm / 3/4" BSP
• Nozzles – 4 Built-in
• Easy Arc Adjustment Range – 40 – 360°

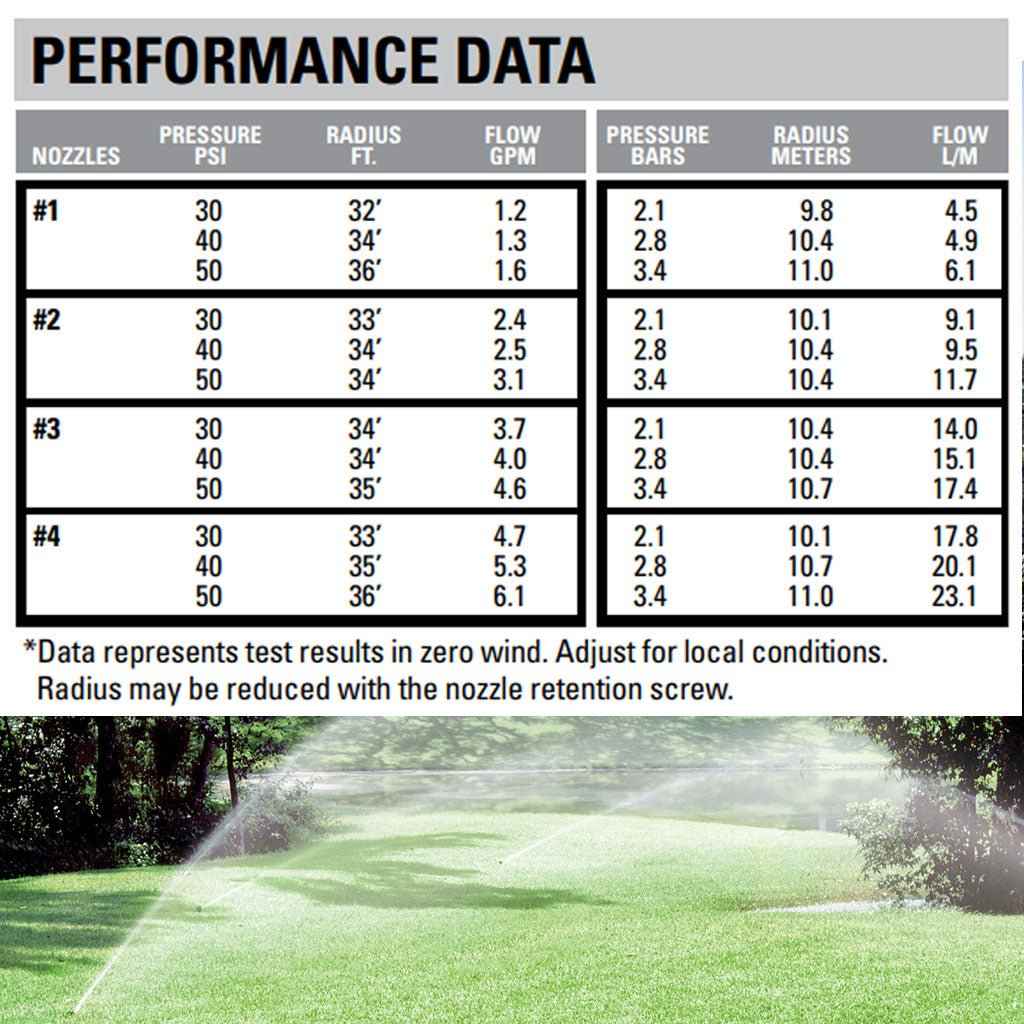

• Flow Range – 2.6 - 31 litres p/m

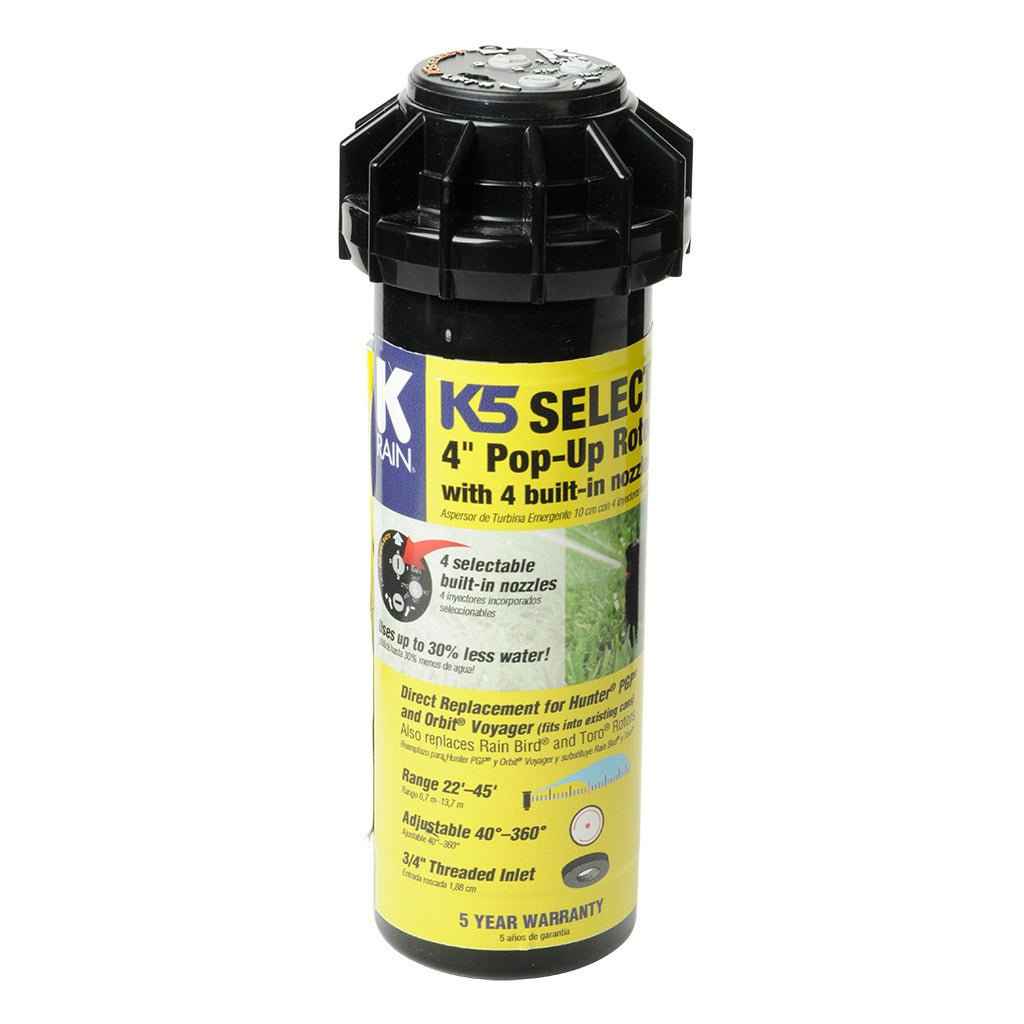

K5 - 15103

K5 Select Gear Drive Rotor Sprinkler

Save water without compromising garden growth!

The K-Rain K5 Select has 4 built-in water-saving nozzles to help you reduce water consumption by up to 30%.Simply select spray pattern and corresponding water-saving nozzle for uniform watering. The k5 select has a patented built-in nozzle selector that makes it easy for you to choose the correct water-saving nozzle for your specific spray pattern needs. An easy arc set, with adjustability from 40 - 360°, allows you to select desired spray pattern easily with water on or off. 378.3012 sq/m. Maximum coverage allows for watering medium to large areas. 4,5-18.9 lpm output on select nozzles for maximum watering efficiency. Note: The K5 select is factory preset at 180° arc with the 2nd nozzle.

Features

• Water savings – reduce water consumption by up to 30%
• Flow control – conserve water by matching the flow rate to the arc
• Spray pattern – unique spray pattern
• Nozzle selector – built into rotor sprinkler for quick and easy adjustments
• Arc adjustment – easy arc adjustments of 40–360°
• Watering – uniform watering

Specifications

• Spray Radius – 6 - 16.7m
• Pop-Up Height – 4 Inch / 10cm
• Inlet Thread – Female 1.9cm / 3/4" BSP
• Easy Arc Adjustment Range – 40 – 360°
