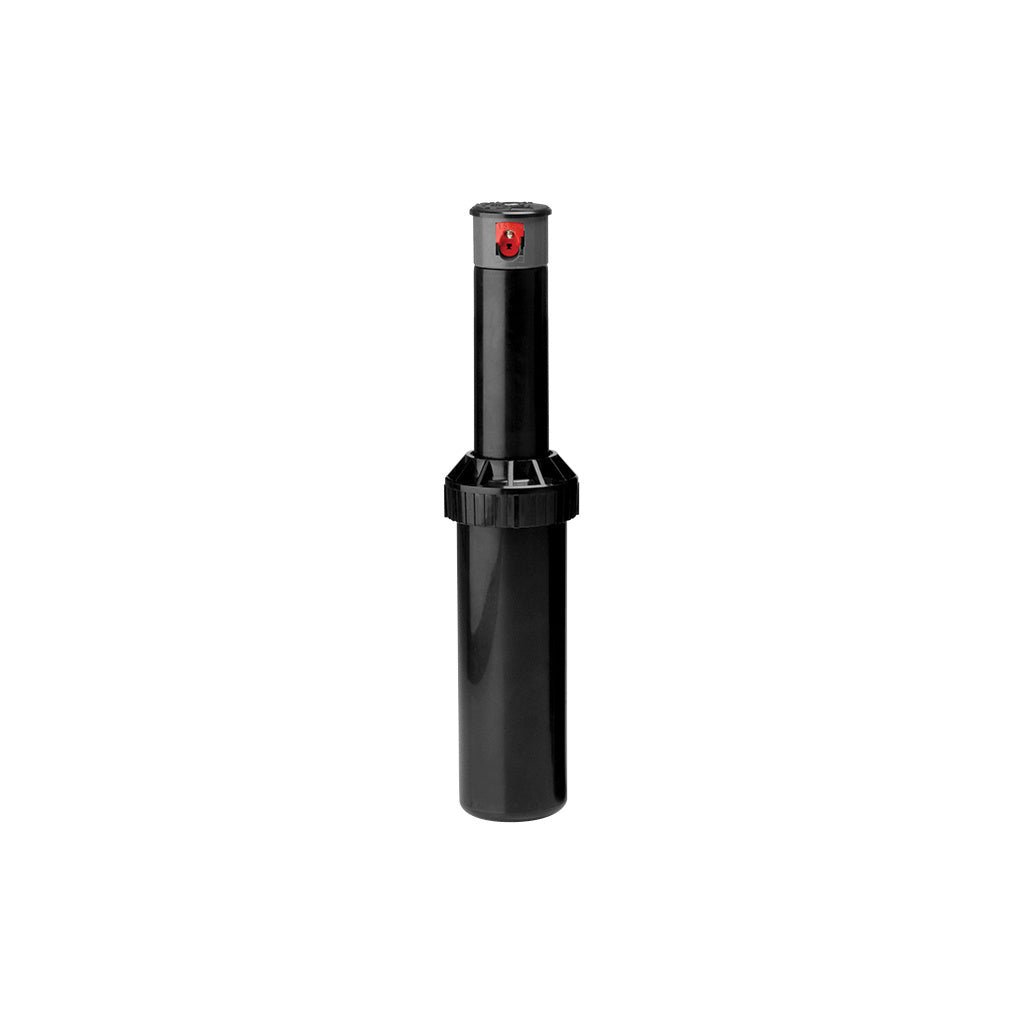

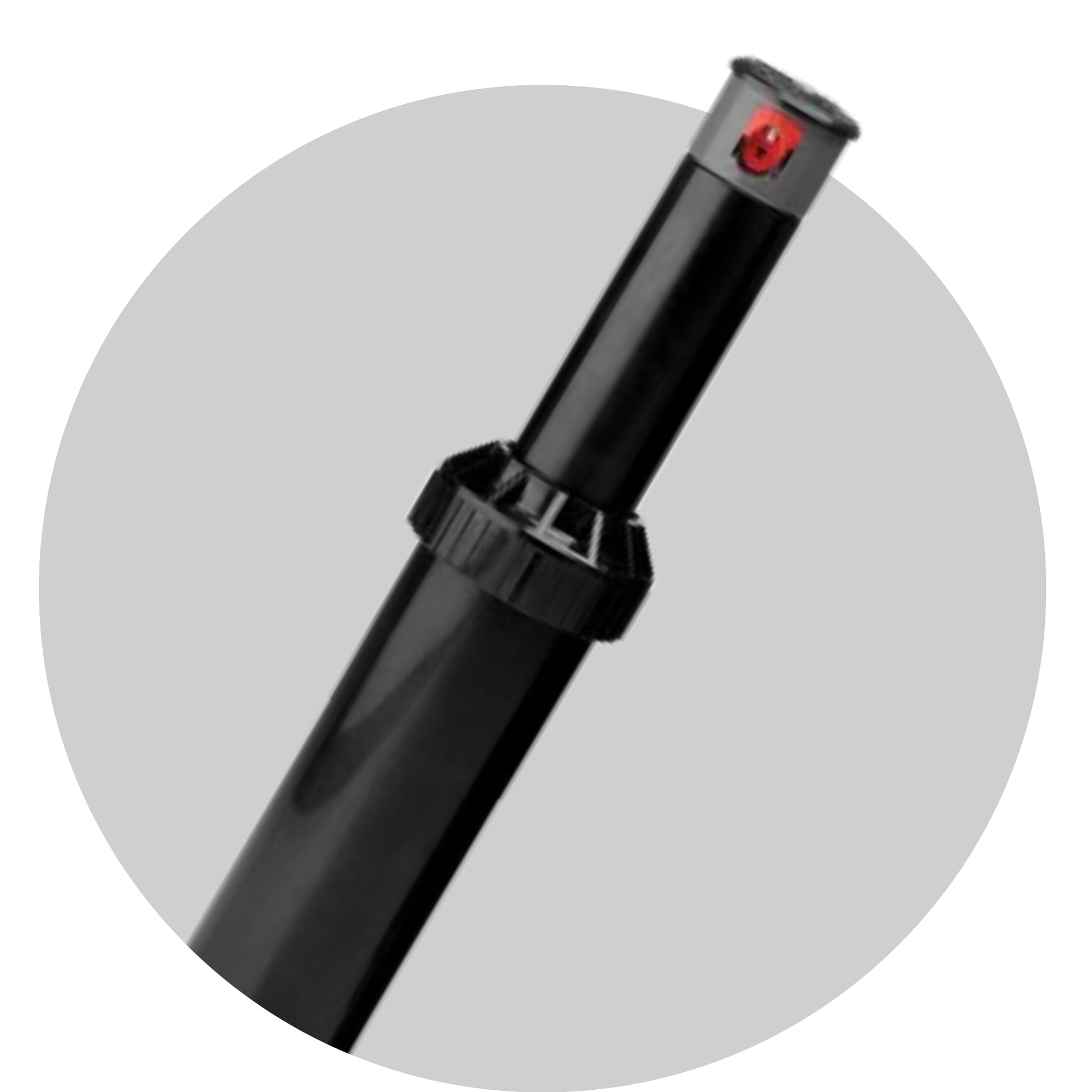

K-Rain Mini Pro Gear Driven Sprinkler
K-Rain Mini Pro Gear Driven Sprinkler
SKU:13003
Couldn't load pickup availability
Take a peek @ images for more info
Video
Description
Perfect for small lawns and landscapes.
Water efficiency.
The MiniPro® is a gear-driven, rotary-type sprinkler, capable of covering an area of 5.4m - 10m radius at nozzle pressure of 1.3 – 4.8 BAR with a discharge rate of 3 – 14.3 litres per minute.
The MiniPro® is supplied with five (5) numerically coded interchangeable nozzles. The sprinkler nozzle trajectory is 25°. The sprinkler has a stainless steel radius adjustment screw.

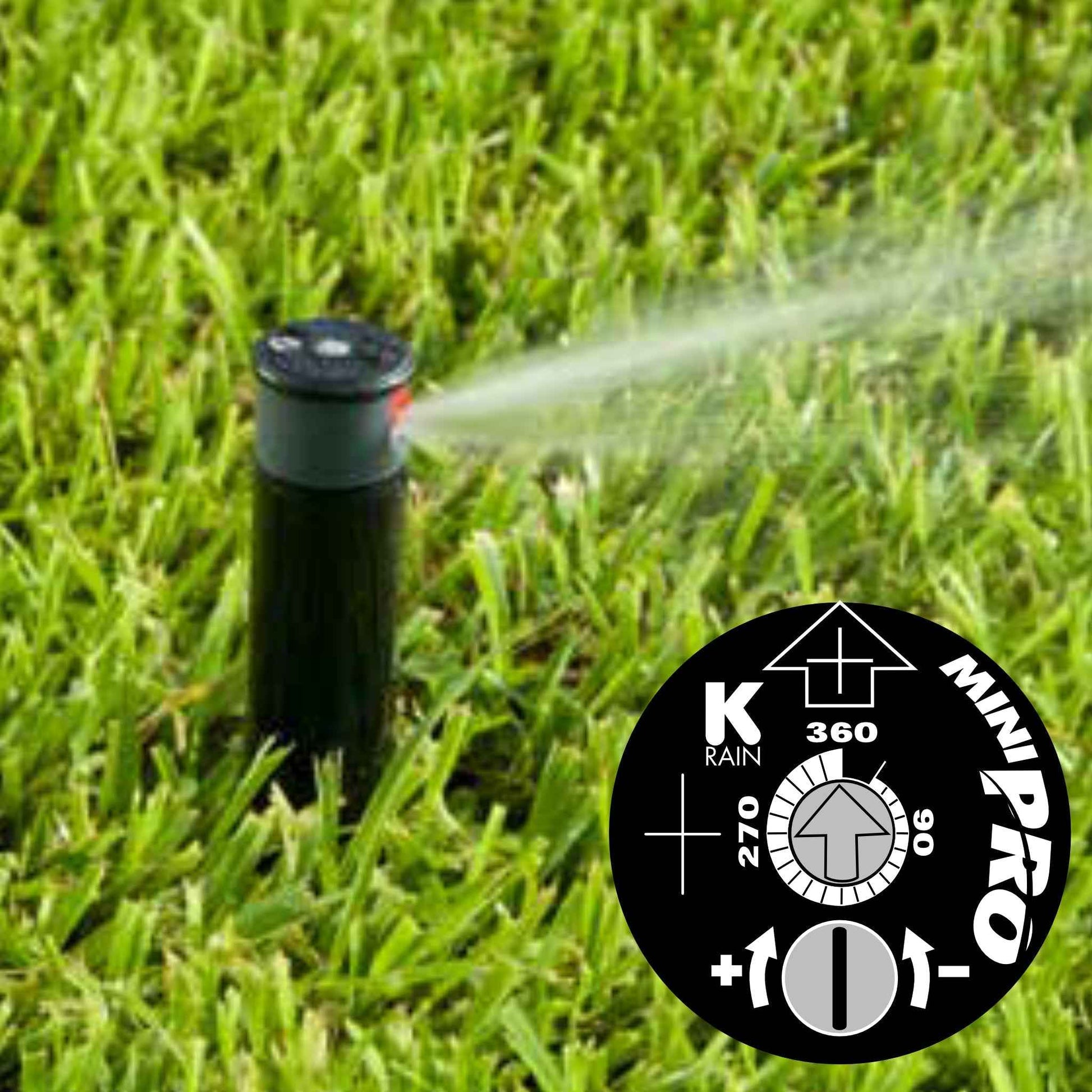

The MiniPro® provides arc adjustment from 40° to 360°. Sprinkler arc setting adjustment is carried out by rotation of a flat blade screwdriver within top cover adjustment slot. Sprinkler coverage pattern is indicated by degree graduations and an arrow located on top of the sprinkler. The MiniPro® is adjustable in all phases of installation (i.e., before installation, after installation while static, and after installation while in operation).
Features & Benefits
- Revolutionary Patented Easy Arc Set – simplified arc set allows for wet or dry adjustment in seconds
- 1/2" Inlet – replaces all standard mini rotors and pop-up sprays
- Adjustable to 360° – provides a full range of adjustment from 40° to 360°
- Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment
- Time Proven Patented Reversing Mechanism – assures continuous reverse and return
- Rubber Cover – seals out dirt and increases product durability
- Optional Check Valve – prevents low head drainage
- Wide Selection of Nozzles – Provides flexibility in system design
Specifications
- Inlet – 1/2" / 1.3cm threaded NPT
- Arc Adjustment Range – 40° to 360°
- Flow Range – 3 – 14.4 litres per minute
- Pressure Rating – 1.4 – 4.8 BAR
- Precipitation Rate – 6.6 – 15.24 mm/hr (depending on spacing and nozzle used)
- Retracted Height – 15.2 cm
- Riser Height – 10.2 cm
- Recommended Spacing – 5.2 – 10.4 m
- Radius – 5.5 – 10.1 m
- Nozzle Trajectory – 25°
Performance Data
Standard Nozzles
No Adjustment to nozzles - Dark blue
-30% Adjustment to nozzles - Medium Blue
| Nozzle | BAR | Spray Radius (m) | Flow Rate (l/m) | Flow Rate (m3/h) | Precip. (mm/hr) |
| #0.75 | 2.07 | 5.5 | 2.8 | 0.17 | ■ 11 | ▲ 13 |
| 2.76 | 5.8 | 3.0 | 0.18 | ■ 11 | ▲ 12 | |
| 3.45 | 6.1 | 3.4 | 0.20 | ■ 11 | ▲ 13 | |
| #1 | 2.07 | 7.9 | 3.4 | 0.20 | ■ 7 | ▲ 8 |
| 2.76 | 8.2 | 4.5 | 0.27 | ■ 8 | ▲ 9 | |
| 3.45 | 8.2 | 4.9 | 0.30 | ■ 9 | ▲ 10 | |
| #1.5 | 2.07 | 8.2 | 5.7 | 0.35 | ■ 9 | ▲ 10 |
| Pre- | 2.76 | 8.2 | 6.8 | 0.41 | ■ 8 | ▲ 9 |
| Installed | 3.45 | 85 | 7.6 | 0.46 | ■ 9 | ▲ 10 |
| #2.0 | 2.07 | 8.8 | 7.6 | 0.46 | ■ 10 | ▲ 11 |
| 2.76 | 9.1 | 8.7 | 0.53 | ■ 11 | ▲ 12 | |
| 3.45 | 9.4 | 10.2 | 0.62 | ■ 10 | ▲ 12 | |
| #3.0 | 2.07 | 9.8 | 11.4 | 0.69 | ■ 12 | ▲ 14 |
| 2.76 | 10.1 | 12.9 | 0.78 | ■ 11 | ▲ 13 | |
| 3.45 | 10.1 | 14.4 | 0.87 | ■ 13 | ▲ 15 |
