K-Rain Narrow Profile (NP) Sprayers

Description

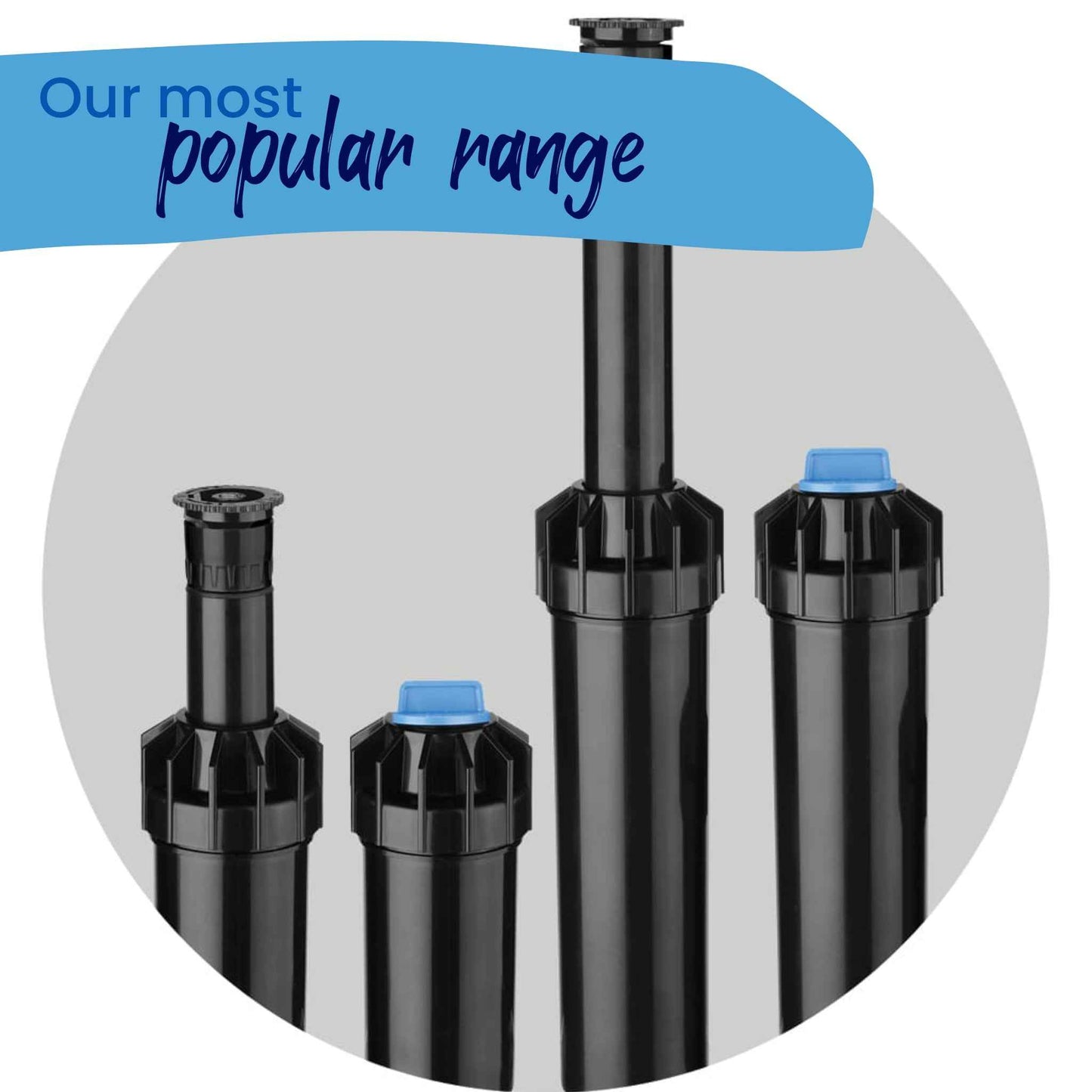

Narrow Profile Sprays

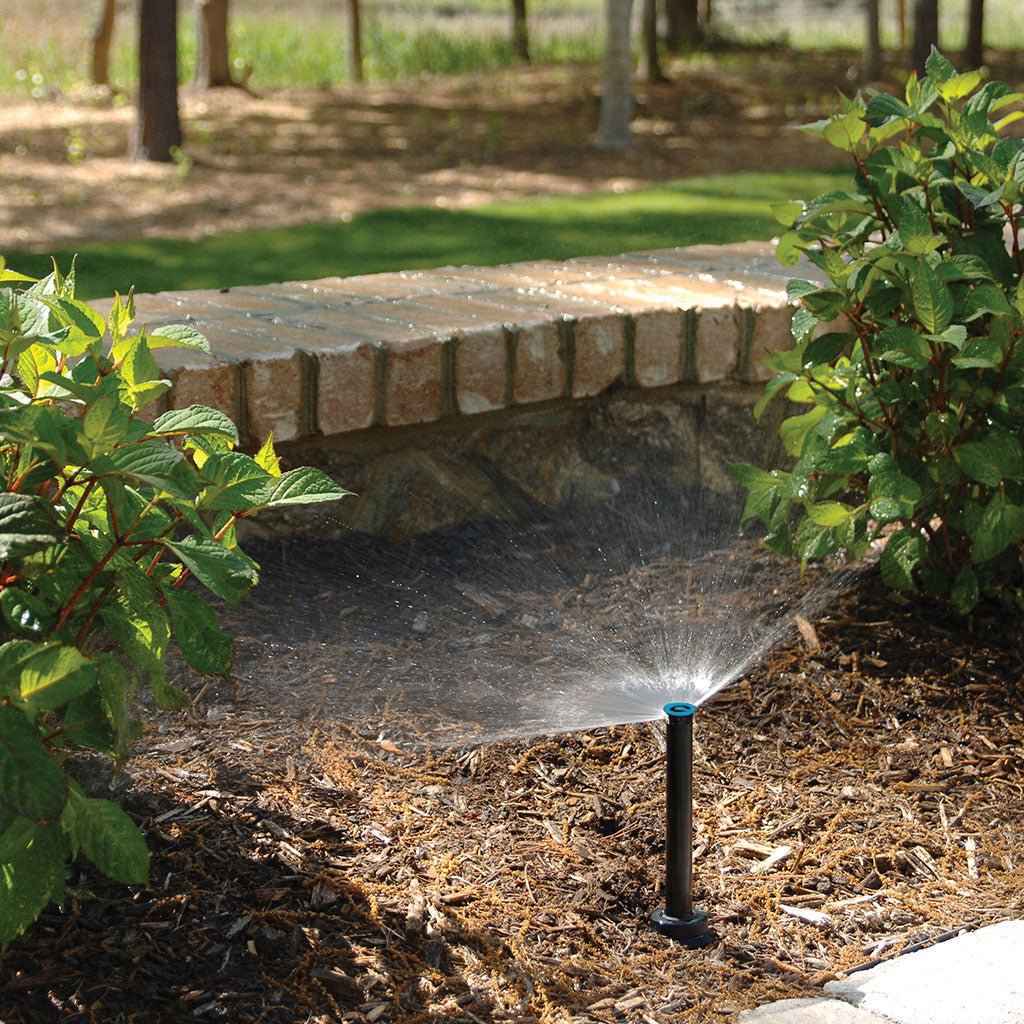

Ideal for watering small lawns, ground cover and shrub areas with tight sprinkler access.

NP Sprays™ have a narrow profile to retrofit easily to existing systems. The carefully selected seal ensures leak-free operation and extends product life.

Types Available

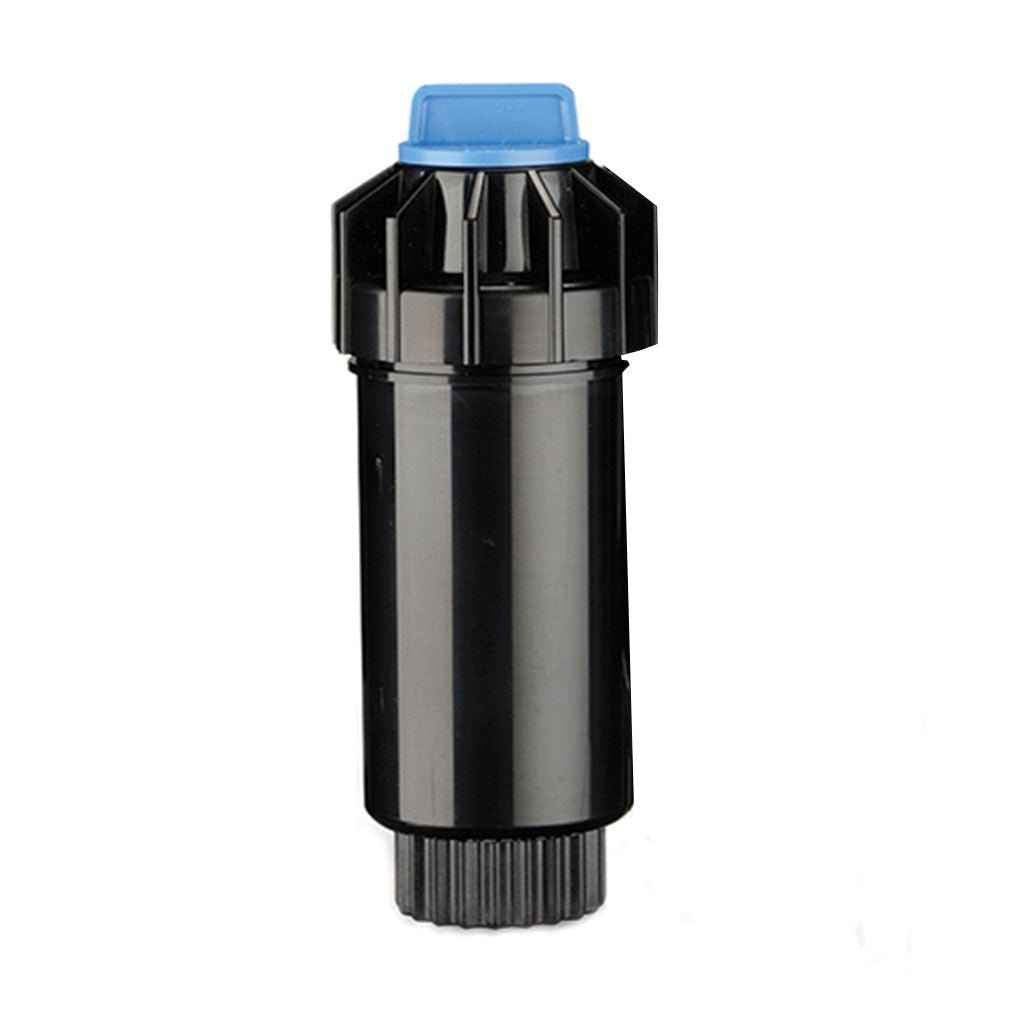

NP2 2 Inch / 5cm Narrow Profile Spray Body - No nozzles

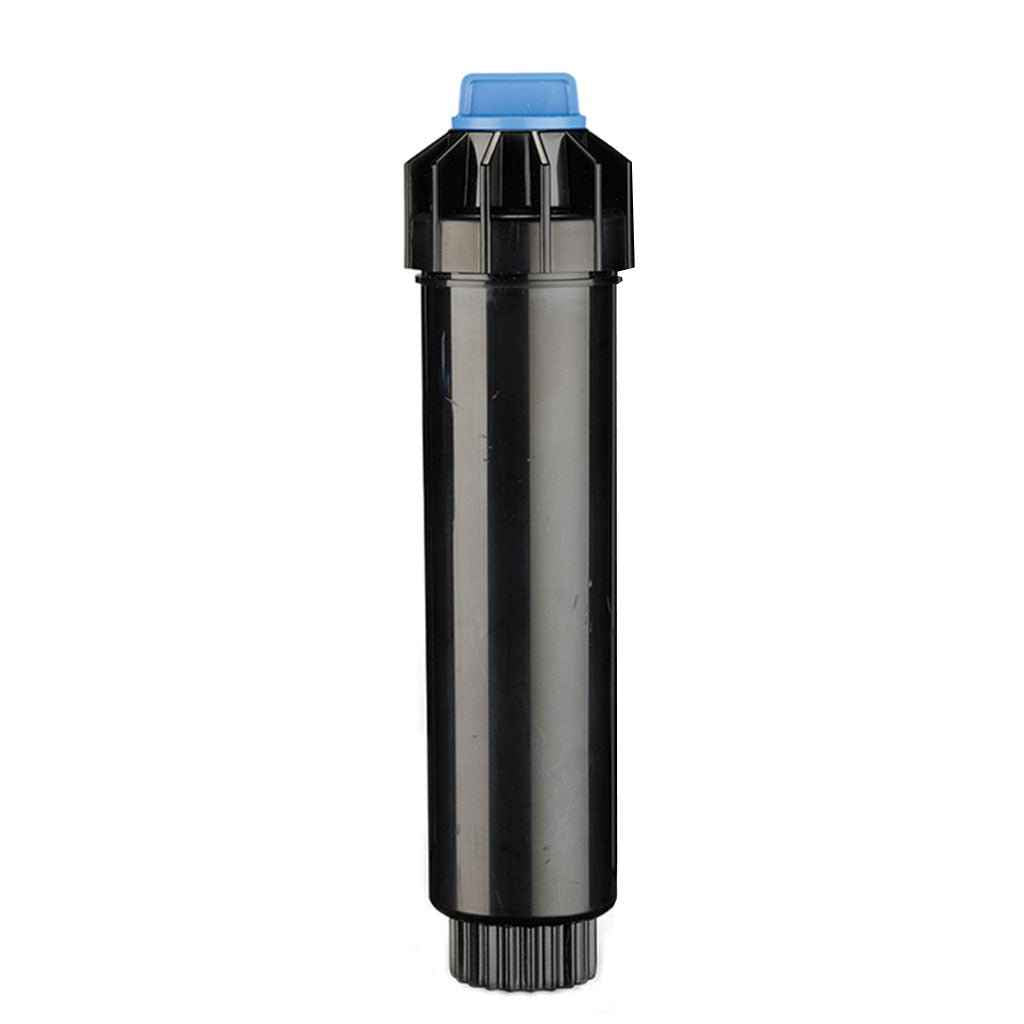

NP4 4 Inch / 10cm Narrow Profile Spray Body - No nozzles

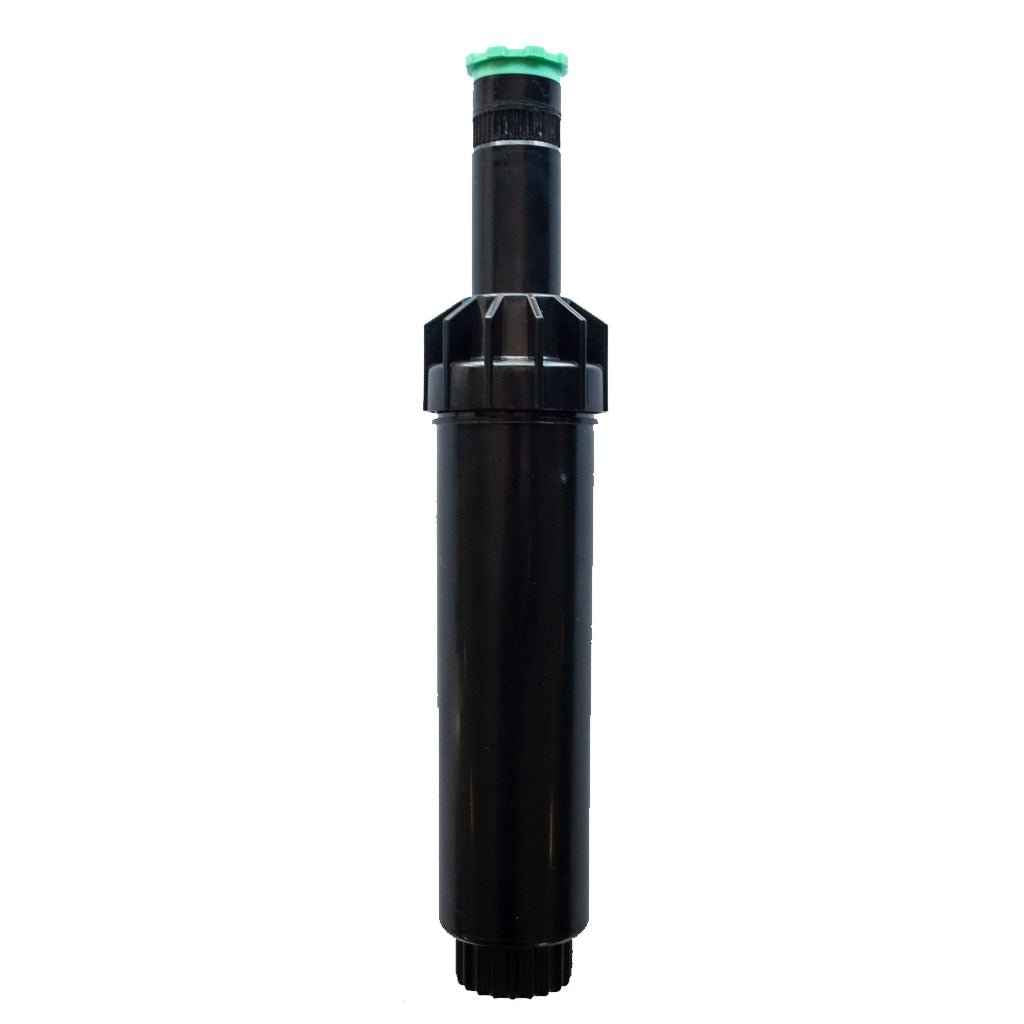

NP4-KVF8 4 Inch / 10cm Narrow Profile Spray Body with green/KVF8 nozzle
NP4-KVF10 4 Inch / 10cm Narrow Profile Spray Body with blue/KVF10 nozzle
NP4-KVF12 4 Inch / 10cm Narrow Profile Spray Body with brown/KVF12 nozzle
NP4-KVF15 4 Inch / 10cm Narrow Profile Spray Body with black/KVF15 nozzle

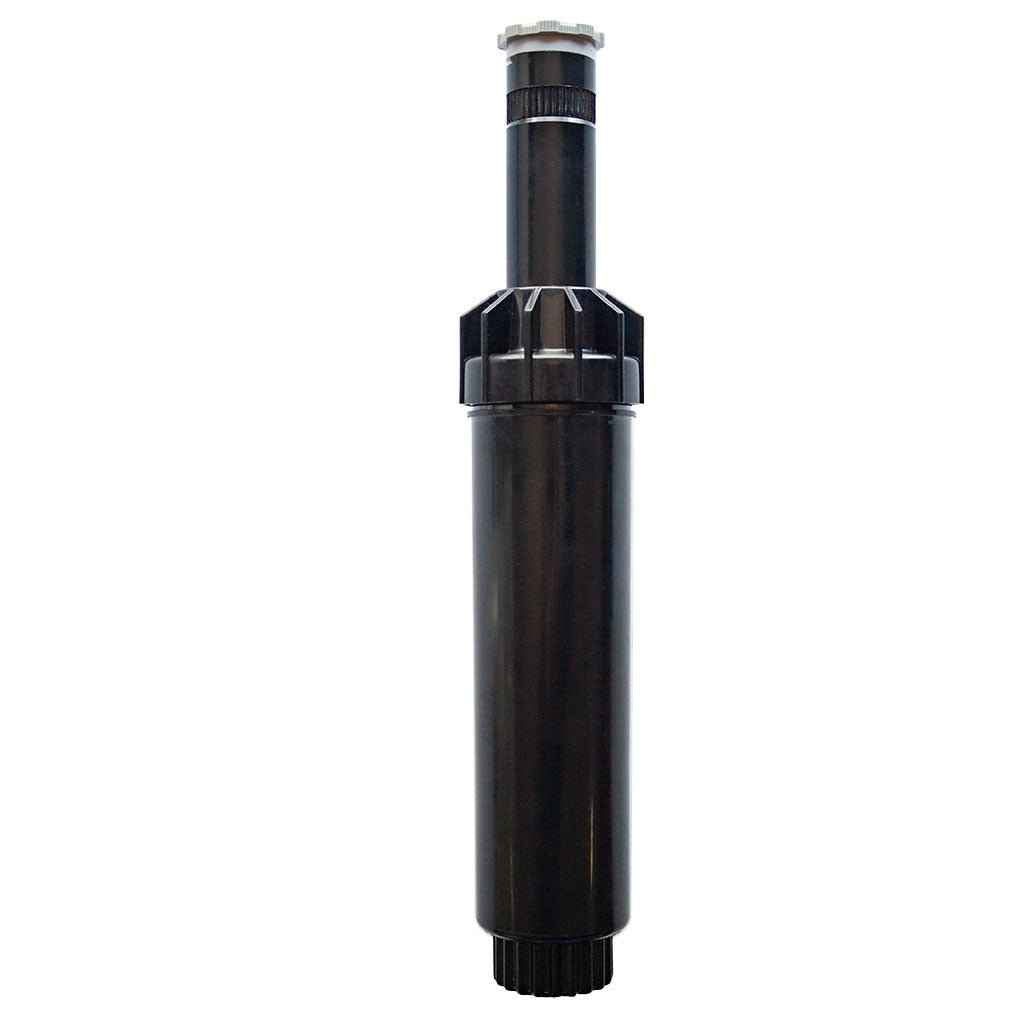

NP4-KVF17 4 Inch / 10cm Narrow Profile Spray Body with grey/KVF17 nozzle

Features & Benefits

Flexibility in system design - available in 5cm and 10cm Models
Easy Nozzle Changes - accepts Female Threaded Nozzles.
Stainless Steel Retraction Spring - provides reliable retraction of the riser in all soil conditions
Ratcheting Riser - allows for easy pattern alignment by turning the riser.
Ratcheting Riser - double-weighted arm for balance & smooth rotation.
Narrow Profile Body - easy to retrofit with existing systems.

Specifications

Inlet – 1.3cm NPT Female Thread
Pressure Rating – 1.4 – 3.5 BAR
NP2 Spray Body Height – 10.2cm
NP4 Spray Body Height – 15.2cm
NP2 Riser Height – 5.1cm
NP4 Riser Height – 9.8cm

Performance Data

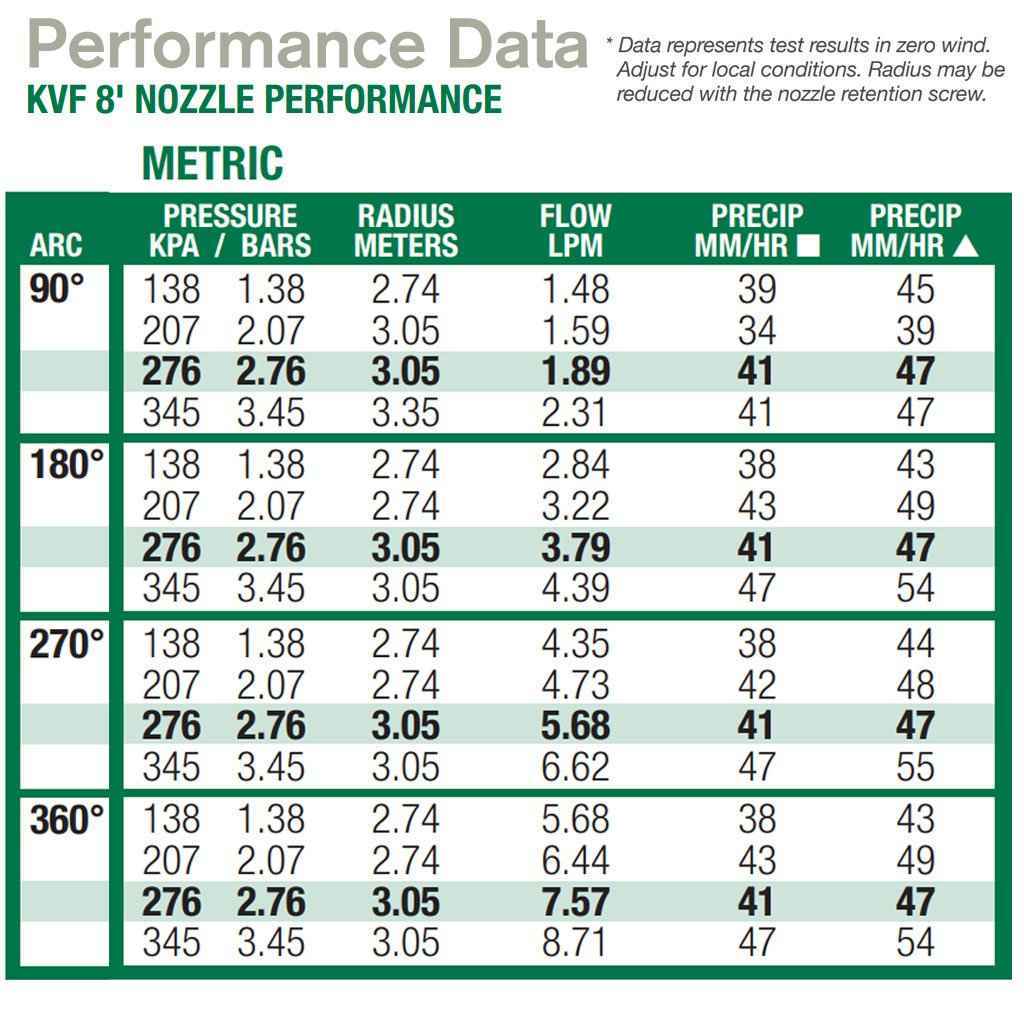

NP4-KVF8 🟢

Arc	BAR	Spray Radius (m)	Flow Rate (l/m)	Precipitation (mm/hr)
90°	1.38	2.74	1.48	■ 39 \| ▲ 45
	2.07	3.05	1.59	■ 34 \| ▲ 39
	2.76	3.05	1.89	■ 41 \| ▲ 47
	3.45	3.35	2.31	■ 41 \| ▲ 47
180°	1.38	2.74	2.84	■ 38 \| ▲ 43
	2.07	2.74	3.22	■ 43 \| ▲ 49
	2.76	3.05	3.79	■ 41 \| ▲ 47
	3.45	3.05	4.39	■ 47 \| ▲ 54
270°	1.38	2.74	4.35	■ 38 \| ▲ 44
	2.07	2.74	4.73	■ 42 \| ▲ 48
	2.76	3.05	5.68	■ 41 \| ▲ 47
	3.45	3.05	6.62	■ 47 \| ▲ 55
360°	1.38	2.74	5.68	■ 38 \| ▲ 43
	2.07	2.74	6.44	■ 43 \| ▲ 49
	2.76	3.05	7.57	■ 41 \| ▲ 47
	3.45	3.05	8.71	■ 47 \| ▲ 54

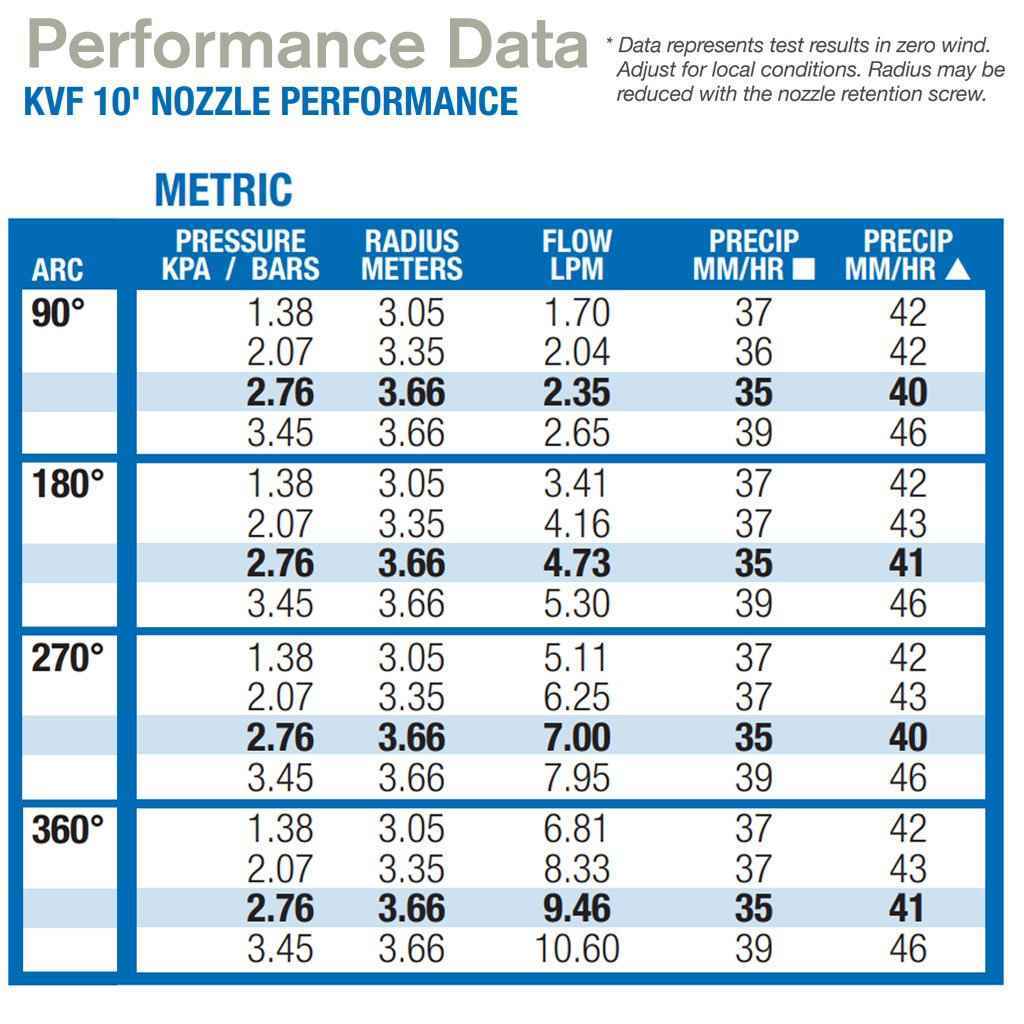

NP4-KVF10 🔵

Arc	BAR	Spray Radius (m)	Flow Rate (l/m)	Precipitation (mm/hr)
90°	1.38	3.05	1.70	■ 37 \| ▲ 42
	2.07	3.35	2.04	■ 36 \| ▲ 42
	2.76	3.66	2.35	■ 35 \| ▲ 40
	3.45	3.66	2.65	■ 39 \| ▲ 46
180°	1.38	3.05	3.41	■ 37 \| ▲ 42
	2.07	3.35	4.16	■ 37 \| ▲ 43
	2.76	3.05	4.73	■ 35 \| ▲ 41
	3.45	3.05	5.30	■ 39 \| ▲ 46
270°	1.38	3.05	5.11	■ 37 \| ▲ 42
	2.07	3.35	6.25	■ 37 \| ▲ 43
	2.76	3.66	7.00	■ 35 \| ▲ 40
	3.45	3.66	7.95	■ 39 \| ▲ 46
360°	1.38	3.05	6.81	■ 37 \| ▲ 42
	2.07	3.35	8.33	■ 37 \| ▲ 43
	2.76	3.66	9.46	■ 35 \| ▲ 41
	3.45	3.66	10.60	■ 39 \| ▲ 46

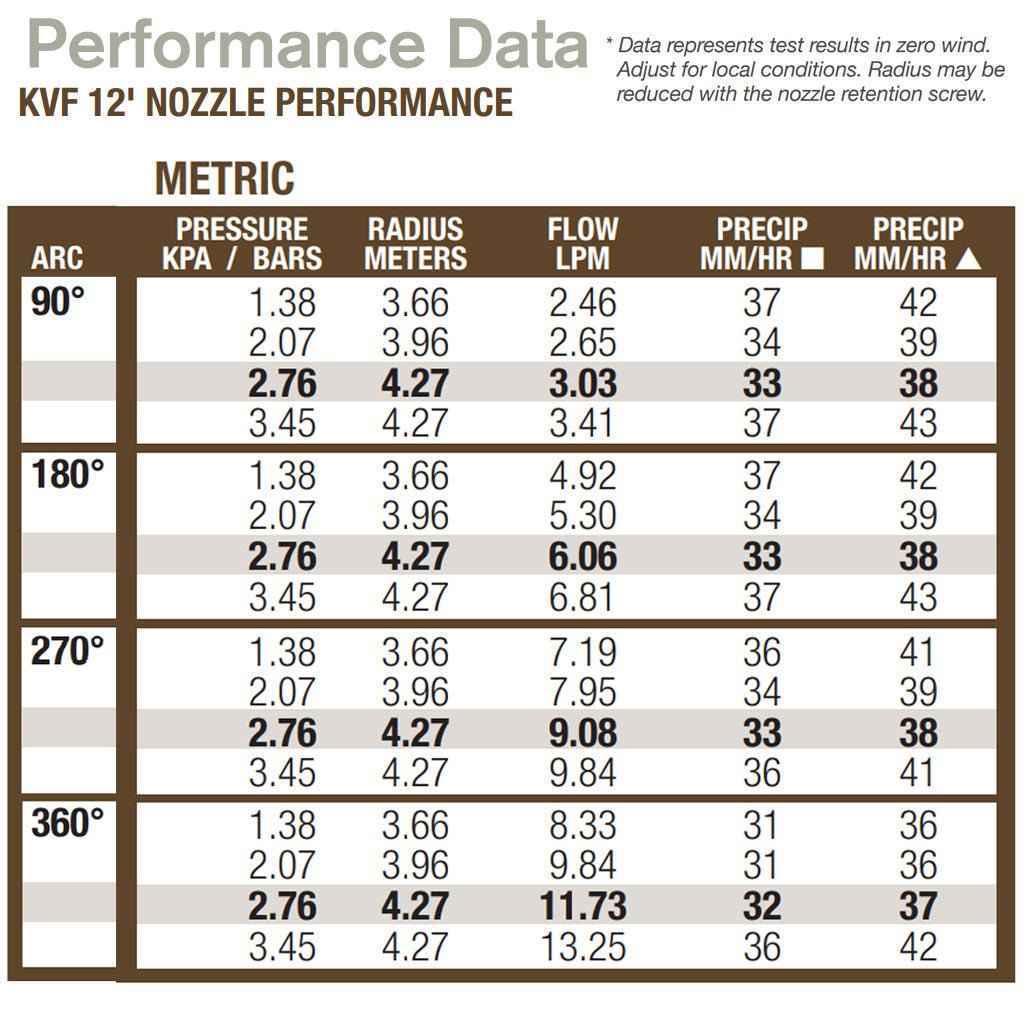

NP4-KVF12 🟤

Arc	BAR	Spray Radius (m)	Flow Rate (l/m)	Precipitation (mm/hr)
90°	1.38	3.66	2.46	■ 37 \| ▲ 42
	2.07	3.96	2.65	■ 34 \| ▲ 39
	2.76	4.27	3.03	■ 33 \| ▲ 38
	3.45	4.27	3.41	■ 37 \| ▲ 43
180°	1.38	3.66	4.92	■ 37 \| ▲ 42
	2.07	3.96	5.30	■ 34 \| ▲ 39
	2.76	4.27	6.06	■ 33 \| ▲ 38
	3.45	4.27	6.81	■ 37 \| ▲ 43
270°	1.38	3.66	7.19	■ 36 \| ▲ 41
	2.07	3.96	7.95	■ 34 \| ▲ 39
	2.76	4.27	9.08	■ 33 \| ▲ 38
	3.45	4.27	9.84	■ 36 \| ▲ 41
360°	1.38	3.66	8.33	■ 31 \| ▲ 36
	2.07	3.96	9.84	■ 31 \| ▲ 36
	2.76	4.27	11.73	■ 32 \| ▲ 37
	3.45	4.27	13.25	■ 36 \| ▲ 42

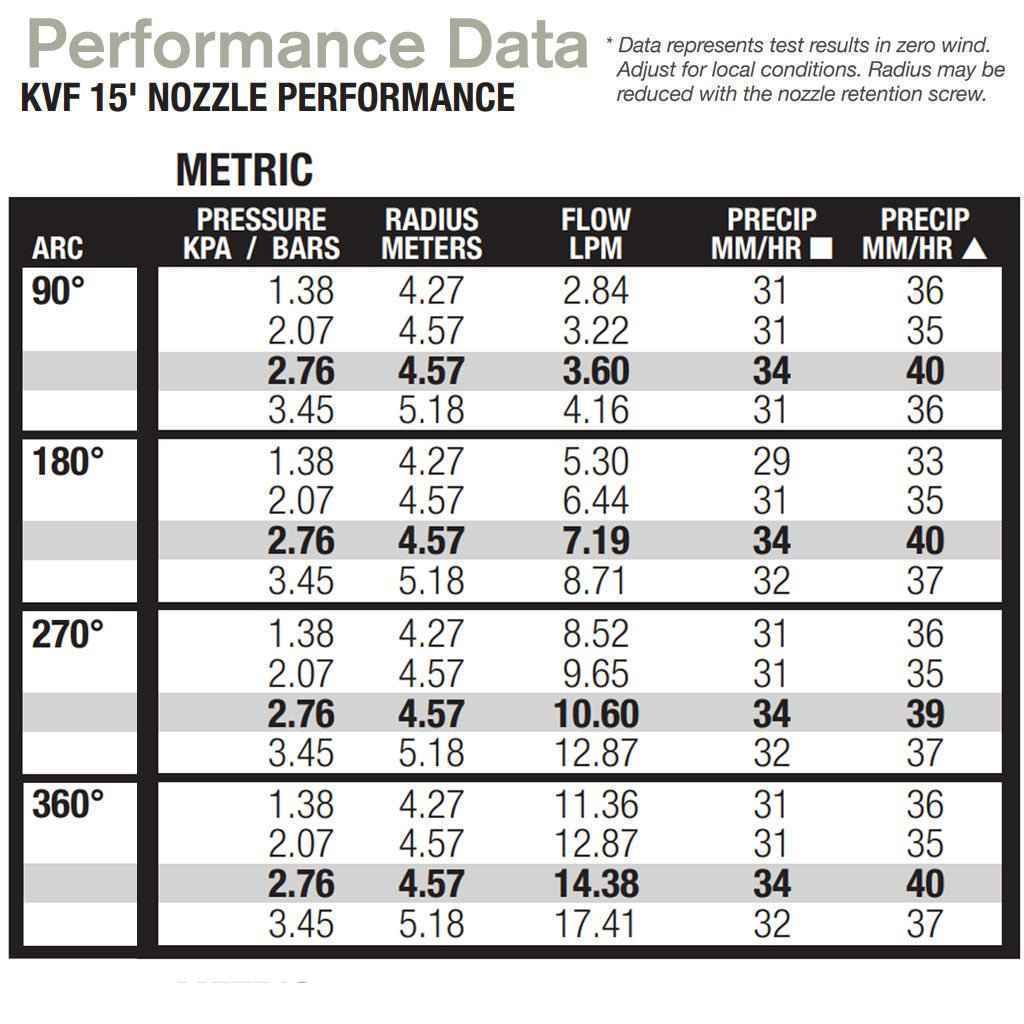

NP4-KVF15 ⚫

Arc	BAR	Spray Radius (m)	Flow Rate (l/m)	Precipitation (mm/hr)
90°	1.38	4.27	2.84	■ 31 \| ▲ 36
	2.07	4.57	3.22	■ 31 \| ▲ 35
	2.76	4.57	3.60	■ 34 \| ▲ 40
	3.45	5.18	4.16	■ 31 \| ▲ 36
180°	1.38	4.27	5.30	■ 29 \| ▲ 33
	2.07	4.57	6.44	■ 31 \| ▲ 35
	2.76	4.57	7.19	■ 34 \| ▲ 40
	3.45	5.18	8.71	■ 32 \| ▲ 37
270°	1.38	4.27	8.52	■ 31 \| ▲ 36
	2.07	4.57	9.65	■ 31 \| ▲ 35
	2.76	4.57	10.60	■ 34 \| ▲ 39
	3.45	5.18	12.87	■ 32 \| ▲ 37
360°	1.38	4.27	11.36	■ 31 \| ▲ 36
	2.07	4.57	12.87	■ 31 \| ▲ 35
	2.76	4.57	14.38	■ 34 \| ▲ 40
	3.45	5.18	17.41	■ 32 \| ▲ 37

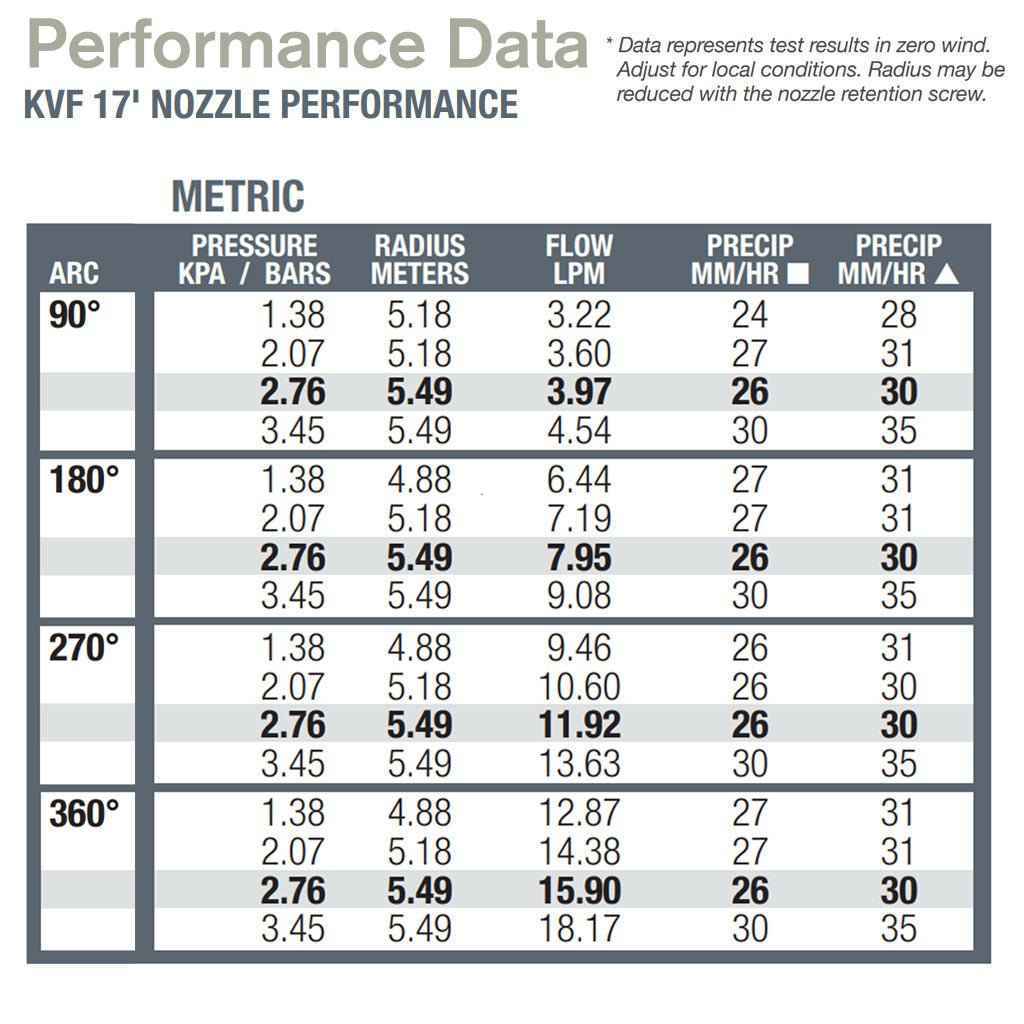

NP4-KVF17 🔘

Arc	BAR	Spray Radius (m)	Flow Rate (l/m)	Precipitation (mm/hr)
90°	1.38	5.18	3.22	■ 24 \| ▲ 28
	2.07	5.18	3.60	■ 27 \| ▲ 31
	2.76	5.49	3.97	■ 26 \| ▲ 30
	3.45	5.49	4.54	■ 30 \| ▲ 35
180°	1.38	4.88	6.44	■ 27 \| ▲ 31
	2.07	5.18	7.19	■ 27 \| ▲ 31
	2.76	5.49	7.95	■ 26 \| ▲ 30
	3.45	5.49	9.08	■ 30 \| ▲ 35
270°	1.38	4.88	9.46	■ 26 \| ▲ 31
	2.07	5.18	10.60	■ 26 \| ▲ 30
	2.76	5.49	11.92	■ 26 \| ▲ 30
	3.45	5.49	13.63	■ 30 \| ▲ 35
360°	1.38	4.88	12.87	■ 27 \| ▲ 31
	2.07	5.18	14.38	■ 27 \| ▲ 31
	2.76	5.49	15.90	■ 26 \| ▲ 30
	3.45	5.49	18.17	■ 30 \| ▲ 35
