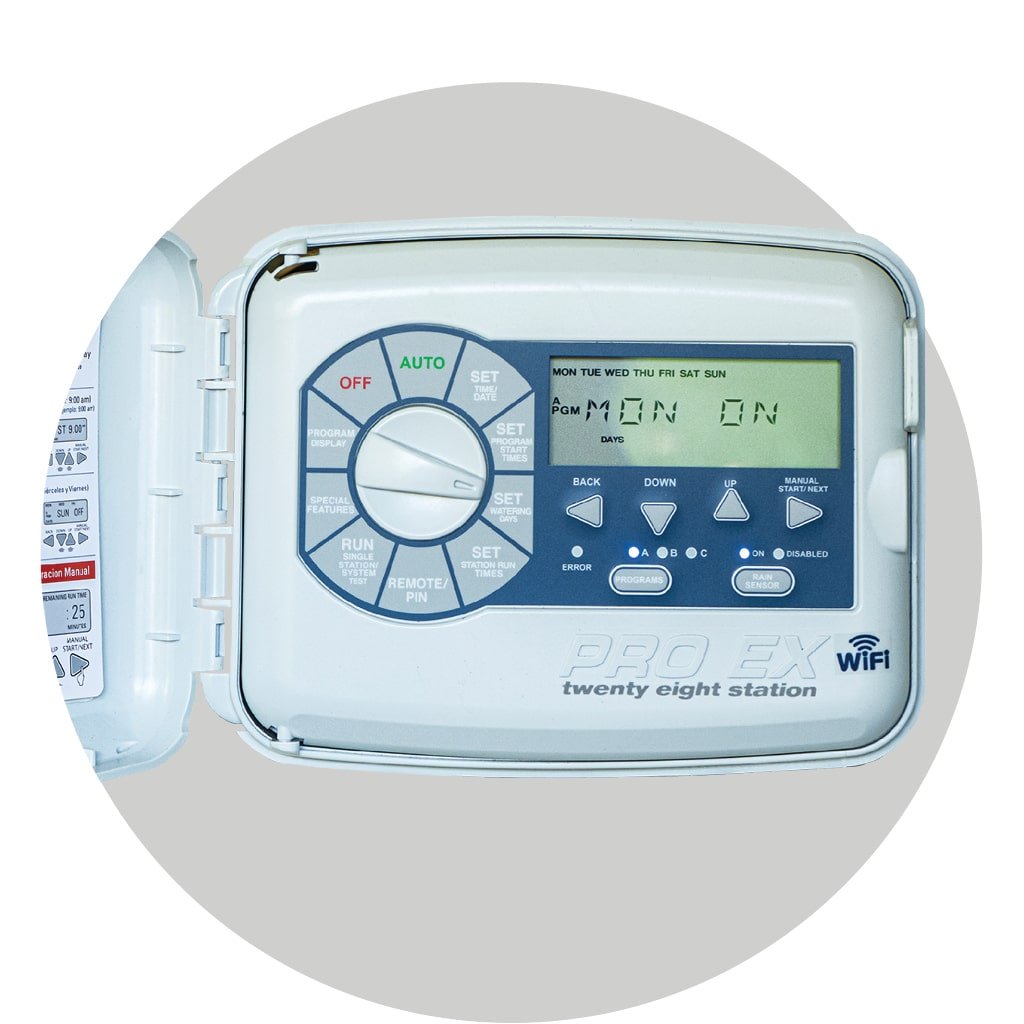

K-Rain PRO EX 2.0 Outdoor Wifi-Ready Irrigation Controller 240V AC

Video

Description

Take control anywhere, anytime.

High quality performance and the convenience of access through a smartphone, tablet or web browser.

Easily and securely sync with homeowners’ or business’ Wifi. It's the automatic choice. The modular design of the PRO EX 2.0 makes it suitable for landscapes of various sizes, including small, midsize, and larger areas. With expandability up to 28 stations, you have the flexibility to operate 4, 8, 12, 14, 16, 18, 22, or 28 zones by incorporating 4 and 14 station expansion modules - 4 & 14 station module expansions available on our shop!
You’re in command. The PRO EX 2.0 Wifi Enabled Modular Controller is a uniquely configured product, as this one controller can be used in 3 different manners — use it as a full-on Wifi controller, a strictly conventional controller or a remote-controlled controller.
This model is an outdoor 4 station 220V controller.

Available in fixed 4, 8 or 12 stations, these compact controllers offer an array of user-friendly features.

Features & Benefits

• Wifi enabled - Syncs with Wifi for functionality through a smartphone, tablet, or web browser, with remote access and alerts.
• Patented Full Program Display - One screen shows watering days, start times, station numbers, and special programming.
• Rain/Freeze Sensor Ready - Automated operation can be controlled by rain/freeze sensors on a station-by-station basis.
• Flow Sensor Ready – Direct connection, with high/low flow abort settings and flow data capture.
• Weather IQ® – Uses local weather conditions to bypass irrigation in wet conditions.
• Wireless Module Connector – Allows for optional wireless communication installation.
• Diagnostic Circuit Breaker – Identifies and isolates station issues (shorts, faults, valve location), while the remaining stations continue operating.
• Advanced Diagnostics – Alerts (visual/audible) for programming errors or conditions preventing operation.
• Station Delay/Overlap Programming – Adds time between stations or allows dual operation to handle issues like well recovery and slow-closing valves.
• Large Backlit LCD Screen – Best-in-class visualization for all installations.
• AM/PM or 24-Hour Clock Settings – Allows users to choose their preferred time format.
• Flexible Operation – Supports both manual and remote operation.
• Manual Start – Push button for manual program operation.
• Permanent Memory – Non-volatile memory retains programming during power outages.
• Buried Valve Locate Feature – Helps locate buried valves in the field.
• Sensor Bypass Switch – Global override for active sensors across all stations.
• Master Valve/Pump Start Ready – Individual station programming for master valve or pump operation.
• Valve Test Terminal (VT) – Easily matches field wires with stations during installation.
• Dedicated Sensor Terminals – Enables direct sensor installation for maximum control.
• Default Programming – Saves and recalls programs without reprogramming.
• Permanent Day Off – Set any day of the week as a non-watering day, regardless of programming.
• Seasonal Adjust – Quick global adjustment of watering times (10-200%) for water conservation.
• Built-in Level – Simplifies unit leveling during installation.

Specifications

Operating Specifications

• Station run times 1 minute to 6 hours for all stations
• Number of programs 3
• Number of automatic start times 4 per program
• Program numbering schedules:
  Odd (odd calendar days
  Even (even calendar days)
  Custom (days of the week)
  Interval (1-31 days)

Electrical Specifications

• Power Input 240V AC +-10% 50Hz
• Power Output 24V AC 1.25 Amp
• Power backup Lithium coin-cell battery maintains time and date during primary power outages, 4 AAA batteries allow for remote programming and LCD viewing
• Multi-Valve Operation Up to three 24V AC, 7 VA solenoid valves

Optional extras

Possible zone expansions:

4, 8, 12, 14, 16, 18, 22 or 28 Stations

• 4 Station Expansion find it here
• 14 Station Expansion find it here

Wifi Functionality

• 3206 RF Module with short distance antenna
• 3209 Wifi Hub

Dimensions

• Height 19.6cm
• Width 25.4cm
• Depth 12.7cm
