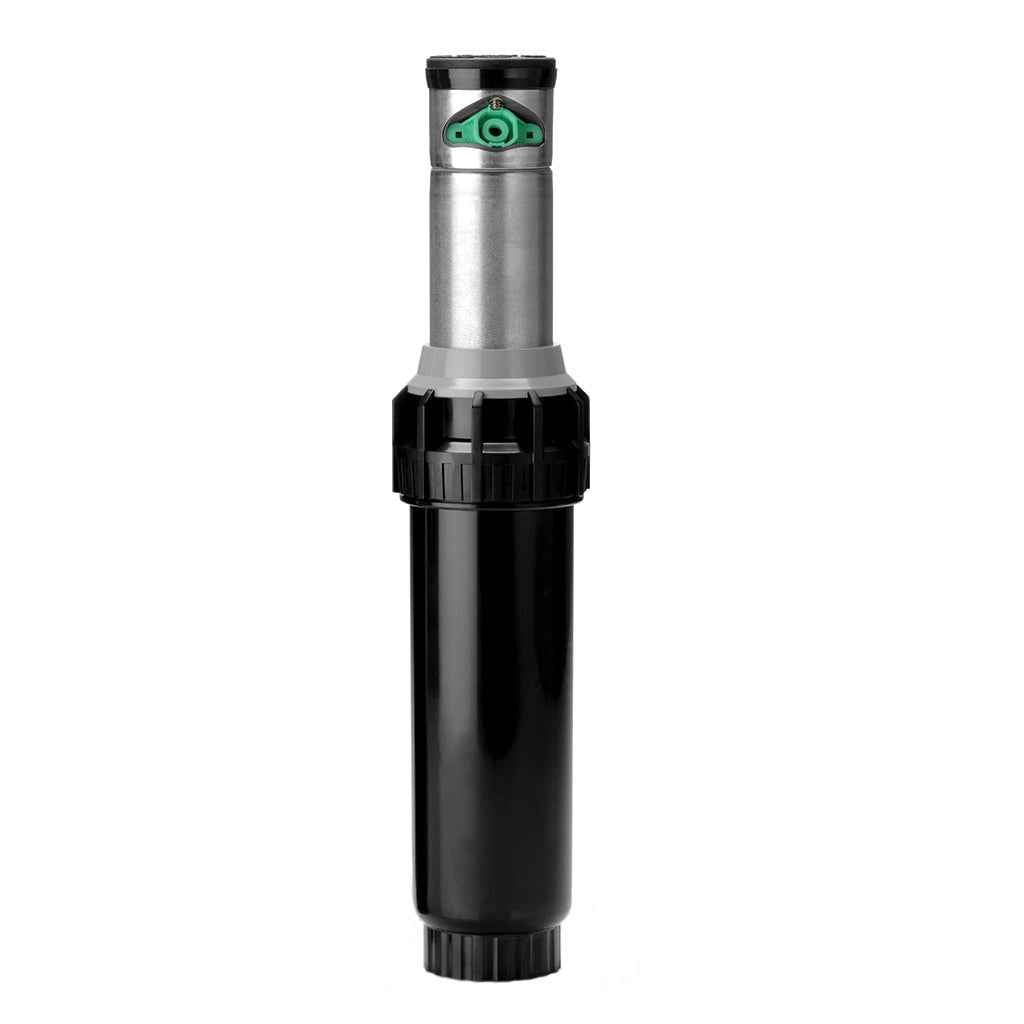

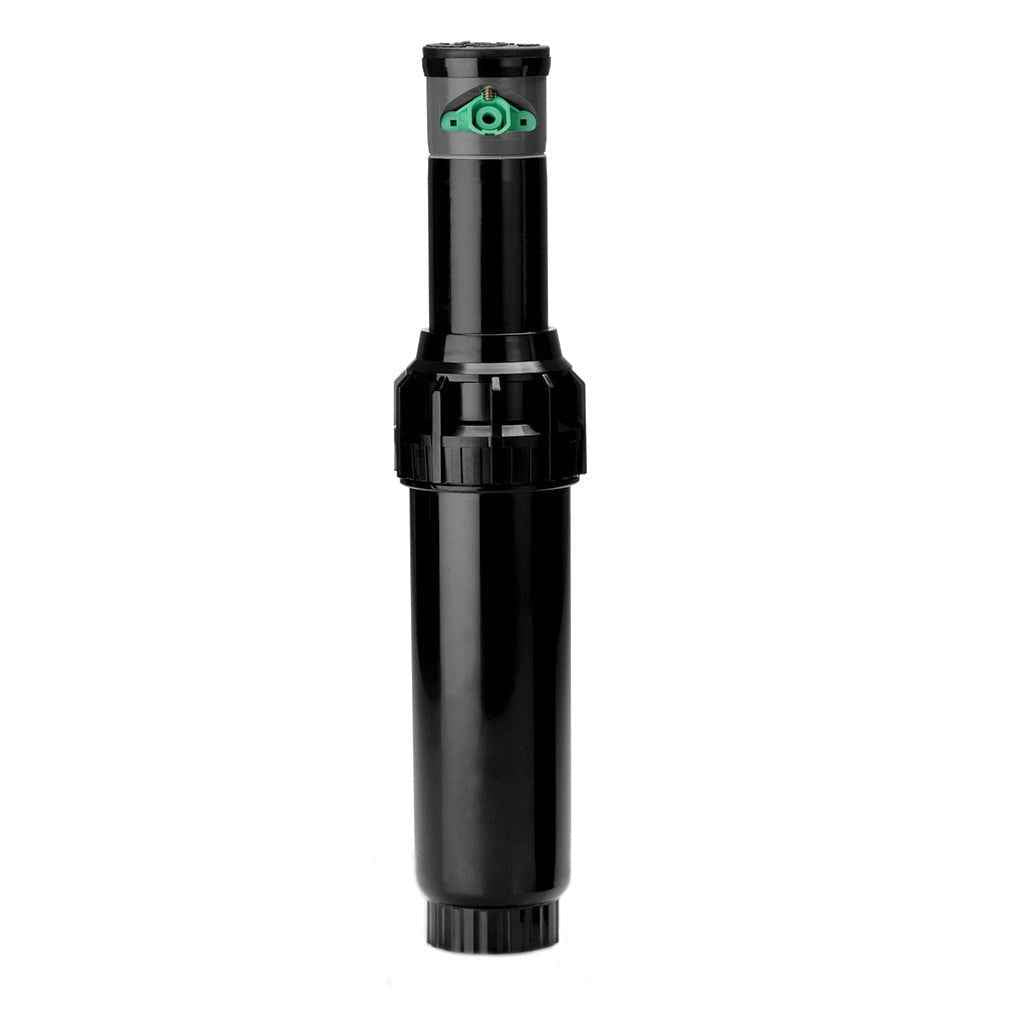

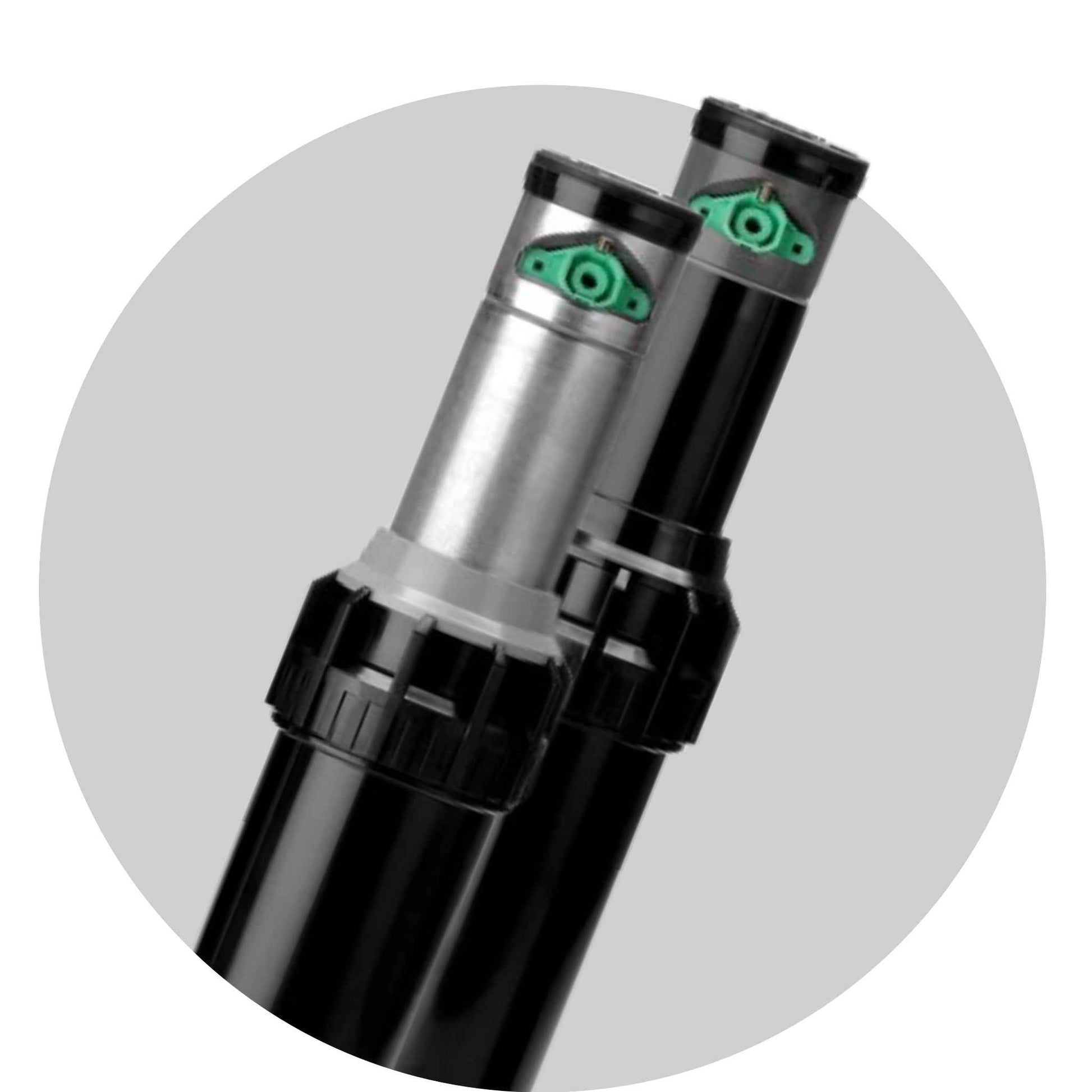

K-Rain Pro Sport Range
Designed specifically for sports turf and commercial applications
The ProSport® comes standard with a unique triple nozzle configuration, consisting of a primary nozzle for long distance and two secondary nozzles for mid-range and short distance coverage. This nozzle design provides superior, close-in water distribution from 13,1 to 23,5 m. Available in a high-speed version, ideal for quick wet downs and dust control.
Features & Benefits

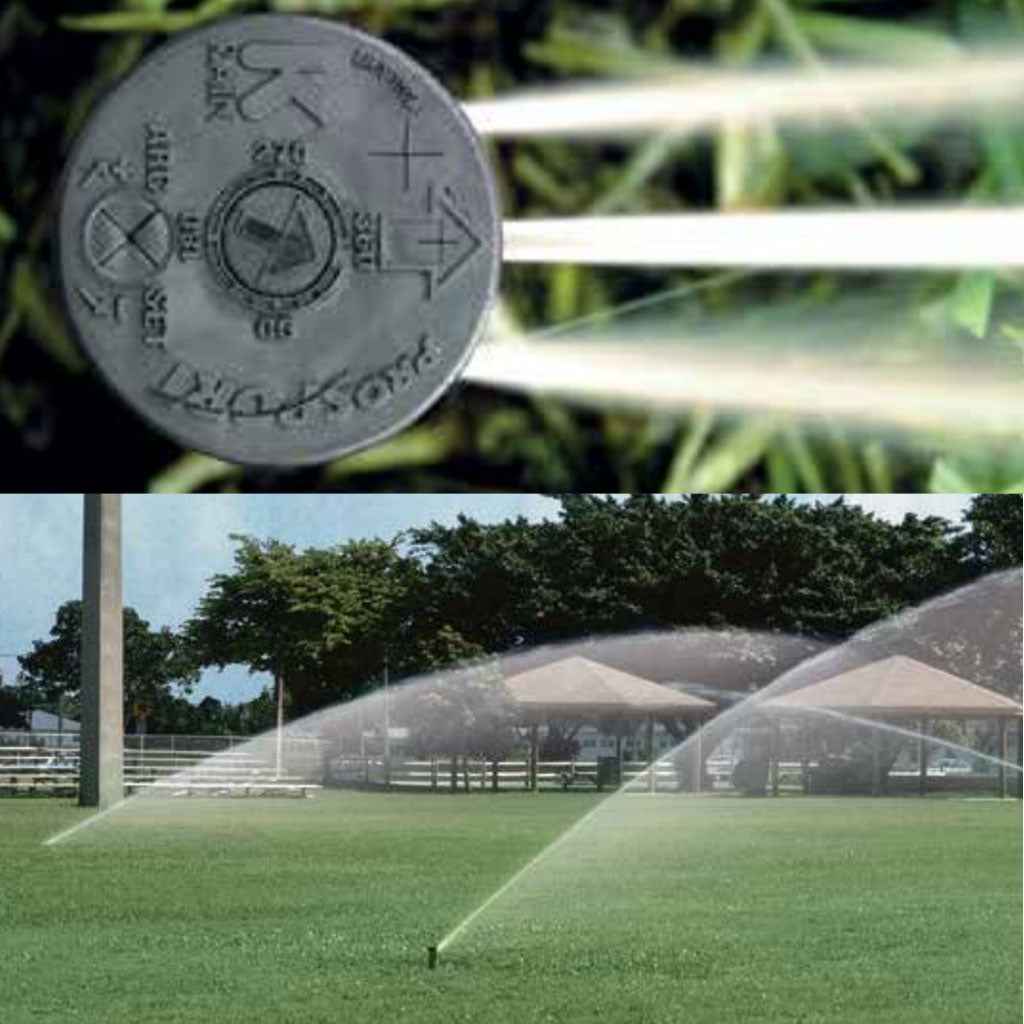

- Revolutionary Patented Easy Arc Set – Simplified arc set allows for wet or dry adjustment in seconds
- Triple Nozzle Configuration – Ensures even distribution of water
- 2 in 1 Adjustable or Continuous Rotation – Provides a full range of adjustment from 40° to a continuous full circle
- Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment
- Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past stop
- Time-Proven Patented Reversing Mechanism – Assures continuous reverse and return over a 20-year history
- Heavy-Duty Rubber Cover and Mud Guard – Protects against physical injury and reduces liability, allowing sprinkler to be installed below grade
- Factory Installed Check Valve – Prevents low head drainage
Specifications
- Inlet – 1" (2,5 cm) threaded BSP
- Arc Adjustment Range – 40° to continuous 360°
- Flow Range – 19,3 – 123 liters per minute
- Pressure Rating – 2,8 – 6,2 BAR
- Precipitation Rate – 12,2 – 39,6 mm/hr (depending on spacing & nozzle used)
- Recommended Spacing – 12,2 – 19,8 m
- 4" Retracted Height – 19 cm
- 4" Riser Height – 11,4 cm
- Radius – 13,1 – 23,5 m
- Nozzle Trajectory – 26°

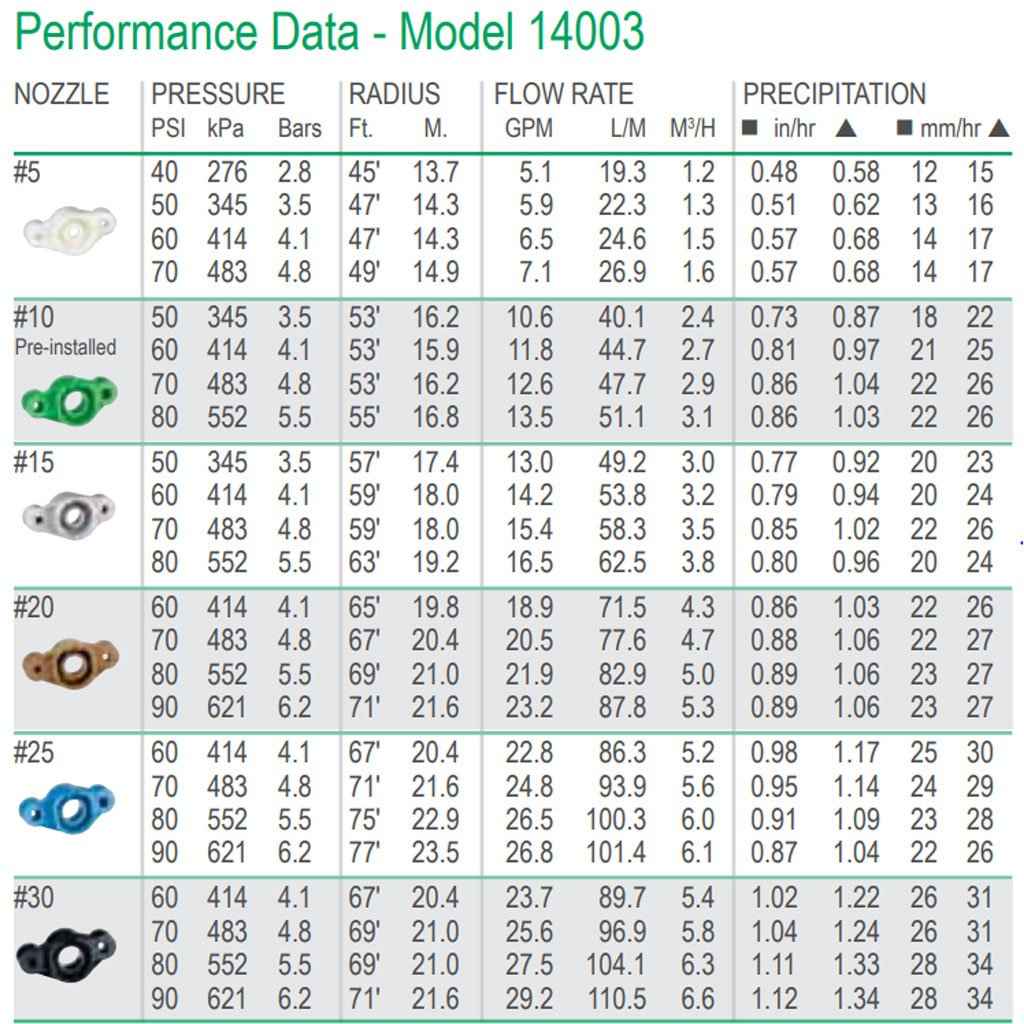

Performance Data
Standard Nozzles
| Arc | BAR | Spray Radius (m) | Flow Rate (l/m) | Flow Rate (m3/h) | Precipitation (mm/hr) |
| #5 ⚪ | 2.8 | 13.7 | 19.3 | 1.2 | ■ 12 | ▲ 15 |
| 3.5 | 14.3 | 22.3 | 1.3 | ■ 13 | ▲ 16 | |
| 4.1 | 14.3 | 24.6 | 1.5 | ■ 14 | ▲ 17 | |
| 4.8 | 14.9 | 26.9 | 1.6 | ■ 14 | ▲ 17 | |
| #10 🟢 | 3.5 | 16.2 | 40.1 | 2.4 | ■ 18 | ▲ 22 |
| 4.1 | 15.9 | 44.7 | 2.7 | ■ 21 | ▲ 25 | |
| 4.8 | 16.2 | 44.7 | 2.9 | ■ 22 | ▲ 26 | |
| 5.5 | 16.8 | 51.1 | 3.1 | ■ 22 | ▲ 26 | |
| #15 🔘 | 3.5 | 17.4 | 49.2 | 3.0 | ■ 20 | ▲ 23 |
| 4.1 | 18.0 | 53.8 | 3.2 | ■ 20 | ▲ 24 | |
| 4.8 | 18.0 | 58.3 | 3.5 | ■ 22 | ▲ 26 | |
| 5.5 | 19.2 | 62.5 | 3.8 | ■ 20 | ▲ 24 | |
| #20 🟤 | 4.1 | 19.8 | 71.5 | 4.3 | ■ 22 | ▲ 26 |
| 4.8 | 20.4 | 77.6 | 4.7 | ■ 22 | ▲ 27 | |
| 5.5 | 21.0 | 82.9 | 5.0 | ■ 23 | ▲ 27 | |
| 6.2 | 21.6 | 87.8 | 5.3 | ■ 23 | ▲ 27 | |
| #25 🔵 | 4.1 | 20.4 | 86.3 | 5.2 | ■ 25 | ▲ 30 |
| 4.8 | 21.6 | 939 | 5.6 | ■ 24 | ▲ 29 | |
| 5.5 | 22.9 | 100.3 | 6.0 | ■ 23 | ▲ 28 | |
| 6.2 | 23.5 | 101.4 | 6.1 | ■ 22 | ▲ 26 | |
| #30 ⚫ | 4.1 | 20.4 | 89.7 | 5.4 | ■ 26 | ▲ 31 |
| 4.8 | 21.0 | 96.9 | 5.8 | ■ 26 | ▲ 31 | |
| 5.5 | 21.0 | 104.1 | 6.3 | ■ 28 | ▲ 34 | |
| 6.2 | 21.6 | 110.5 | 6.6 | ■ 28 | ▲ 34 |
