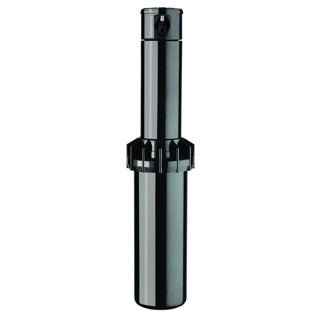

K-Rain RPS Select Rotor Sprinkler

Video

Description

Enjoy installation convenience and matched precipitation without hassles

The first gear-driven sprinkler that makes matched precipitation fast and easy, without the need for cumbersome changing of nozzles or sprinkler heads in the field.

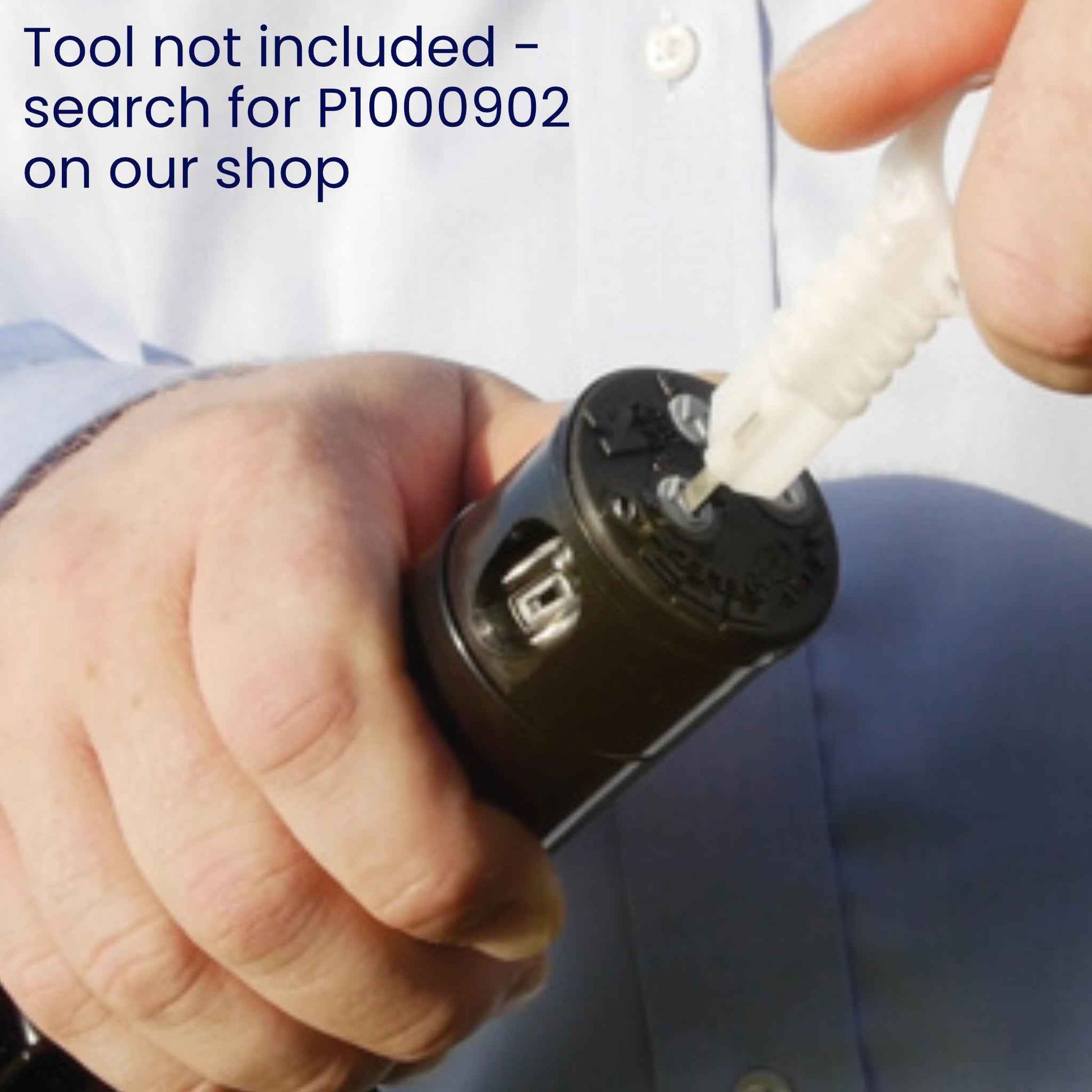

The RPS Select offers a choice of 4 selectable built-in nozzles. With a twist of a screwdriver, quickly select the correct nozzle flow to match the arc setting of the sprinkler, wet or dry. No nozzle trees to carry or lose. Fewer chances for errors. Using a combination of the four nozzles, it’s easy to achieve matched precipitation across all arc settings.

Independent research reveals that most contractors don’t change out factory-installed nozzles to match the sprinkler’s area of coverage. When the same 3.0 gallon nozzle is used for all arcs, the result is areas that are dramatically over-watered or under-watered. The RPS Select offers factory-nozzle convenience with greater water efficiency.

The four on-board nozzles also make the RPS Select a convenient universal replacement sprinkler for other brands.

Features & Benefits

• Four built-in selectable nozzles – fastest nozzle change of any rotor. Never have to remove a nozzle.
• Adjustable arc 40°-360° – all adjustments made from the top – wet or dry, no special tools needed
• Matched precipitation rates – when nozzle setting matched to arc
• Precision-engineered nozzles – for water-saving efficiency

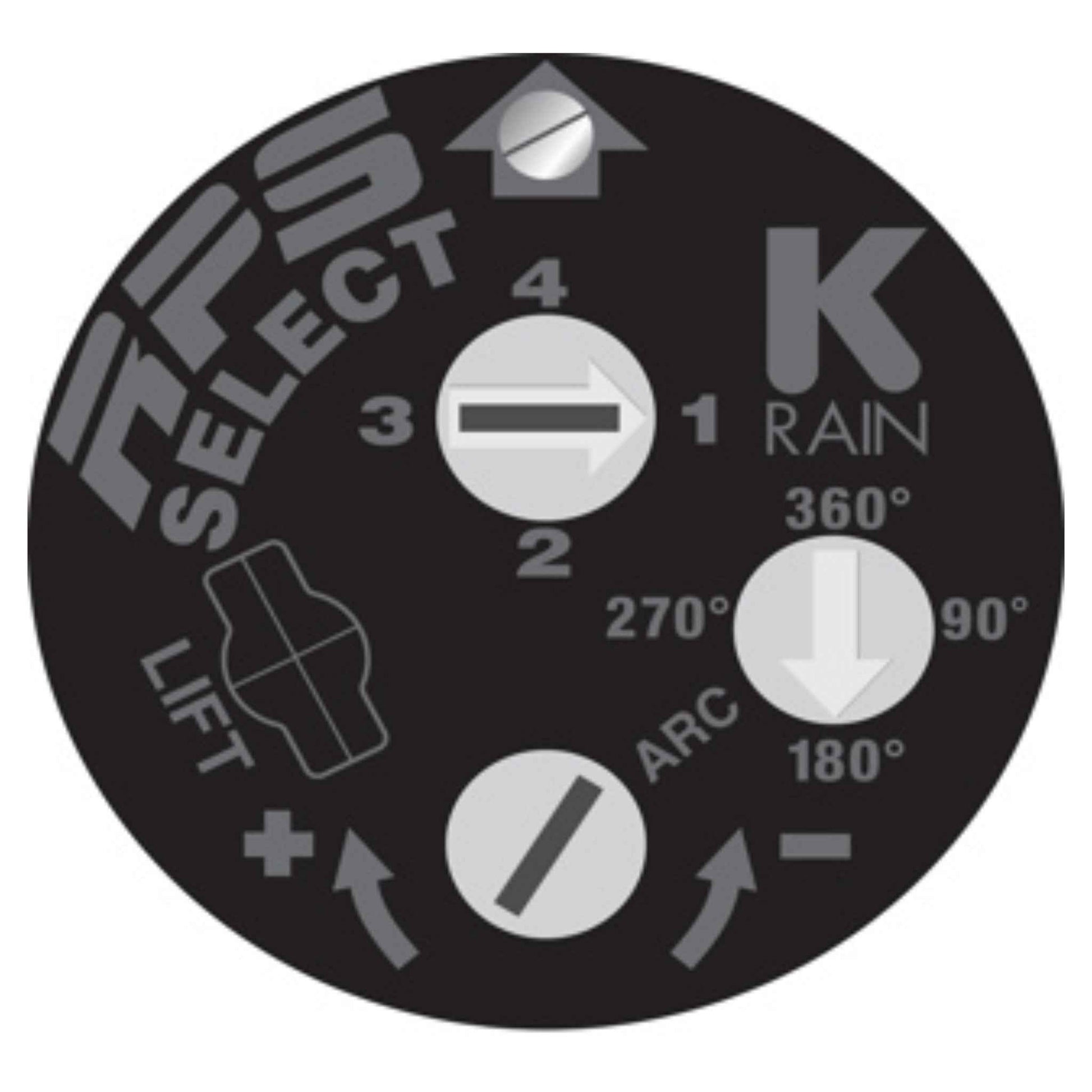

• Top arc set and degree indications – allows for wet or dry adjustment in seconds
• Low-pressure operation
• Universal Riser Assembly – fits into existing Hunter® PGP® and PGP® Ultra cans

Specifications

• Inlet – 3/4" / 19 mm threaded NPT
• Arc Adjustment Range – 40° to continuous 360°
• Flow Range – 4.9 – 25.8 litres per minute
• Pressure Rating – 2.1 – 4.8 BAR
• Precipitation Rate – 6 – 20 mm/hr (depending on spacing and nozzle used)
• Retracted Height – 18.7 cm
• Riser Height – 11.1 cm
• Recommended Spacing – 9.1 – 13.4 m
• Radius – 10 – 14 m

Performance Data
