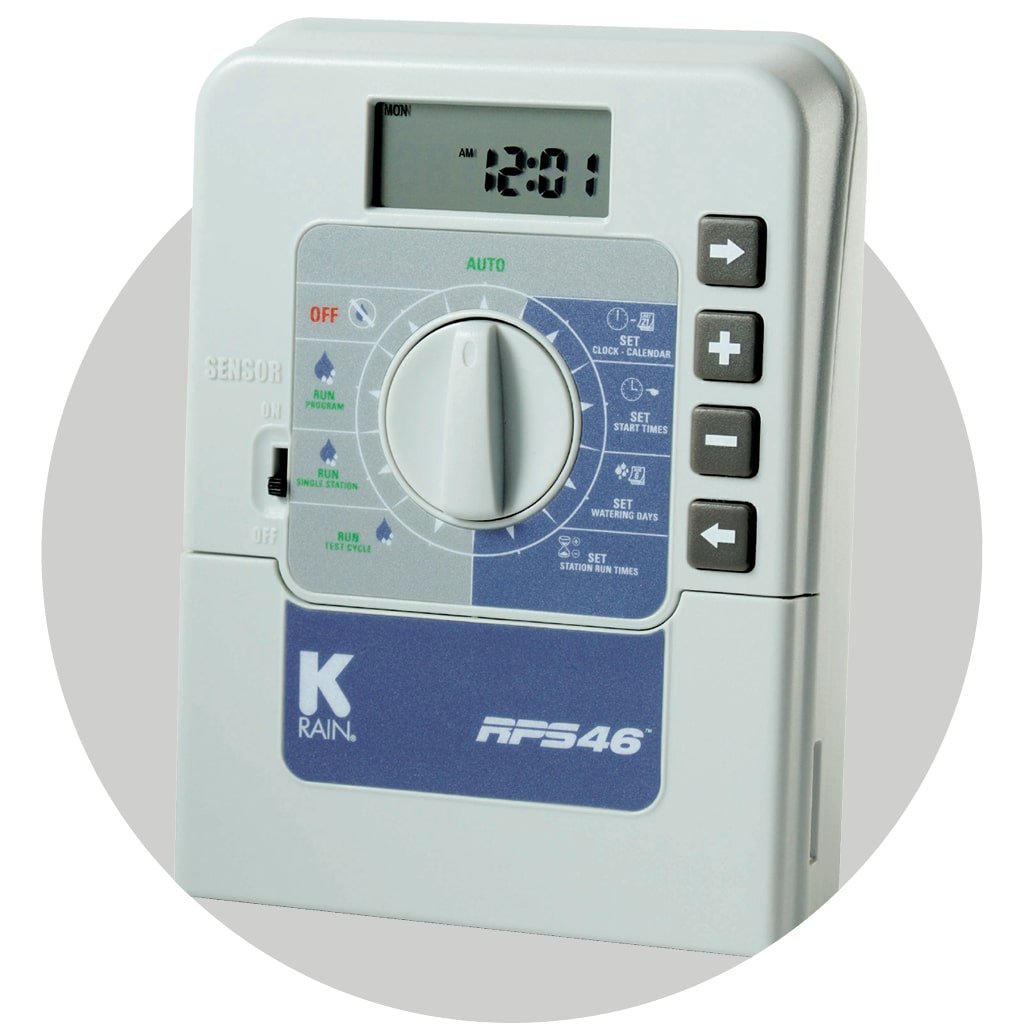

K-Rain RPS46 Mini Indoor Irrigation Controller

Description

A little beast with massive water savings!

Easy adjustment of watering schedules as the seasons change.

The RPS 46 has four individual programs to allow for efficient watering on separate programs. With features like multiple station models, independent programs, seasonal adjustments, and sensor compatibility, this indoor mini controller offers a comprehensive solution for a greener and well-maintained turf.

Features & Benefits

• Four and Six Station Models – Designed for indoor residential and light commercial applications.
• Four Fully Independent Programs – Allows up to four separate start times per program, with a maximum of 16 starts per day.
• Indoor Models with External Transformer and Plug – Convenient for indoor use.
• Seasonal Adjustment – Adjust watering durations quickly from 10% to 200% in 10% increments.
• Rain Sensor Ready – Inhibits automatic watering when wet conditions are detected by a suitable rain sensor.
• Flexible Manual Operation – Run a program, start a station, or test the system manually.
• Battery Back-Up – Saves programming during power outages.
• Master Valve/Pump Start Terminal – Offers easy control for master valves or pump operations.
• Manual Operation – Options for automatic, semi-automatic, and single station operation.

Specifications

Operating Specifications

• Station Run Times – 1 minute to 12 hours and 59 minutes
• Number of Programs – 4
• Number of Automatic Start Times – 4 per program
• Program Numbering Schedules – 7 calendar days with individual day selection, 1 to 15-day interval watering, or 365-day calendar for odd/even day watering.

Electrical Specifications

• Power Input – 220V External Transformer, 240 VAC, 50/60Hz
• Power Output – 24V AC 1.0Amp
• Overload Protection – Standard 20mm 1.0Amp fuse
• Power Failure – 9V standard alkaline battery maintains clock and program for up to 2 weeks
• Wiring – Output circuits should be installed and protected in accordance with wiring rules.
• To Solenoid Valve – 24V AC 0.5Amps Max
• Output Load – Total output load must not exceed the valves and pump start requirements.

Optional Extras

• 3208-HRS – Hardwired Rain Sensor

Dimensions

• Height – 14.6cm
• Width – 11.4cm
• Depth – 4.44cm
