K-Rain Super Pro with Intelligent Flow Gear Driven Sprinkler
K-Rain Super Pro with Intelligent Flow Gear Driven Sprinkler
Regular price
R 290.00 ZAR
Regular price
Sale price
R 290.00 ZAR
Unit price
per
Shipping calculated at checkout.
SKU:10003
Couldn't load pickup availability

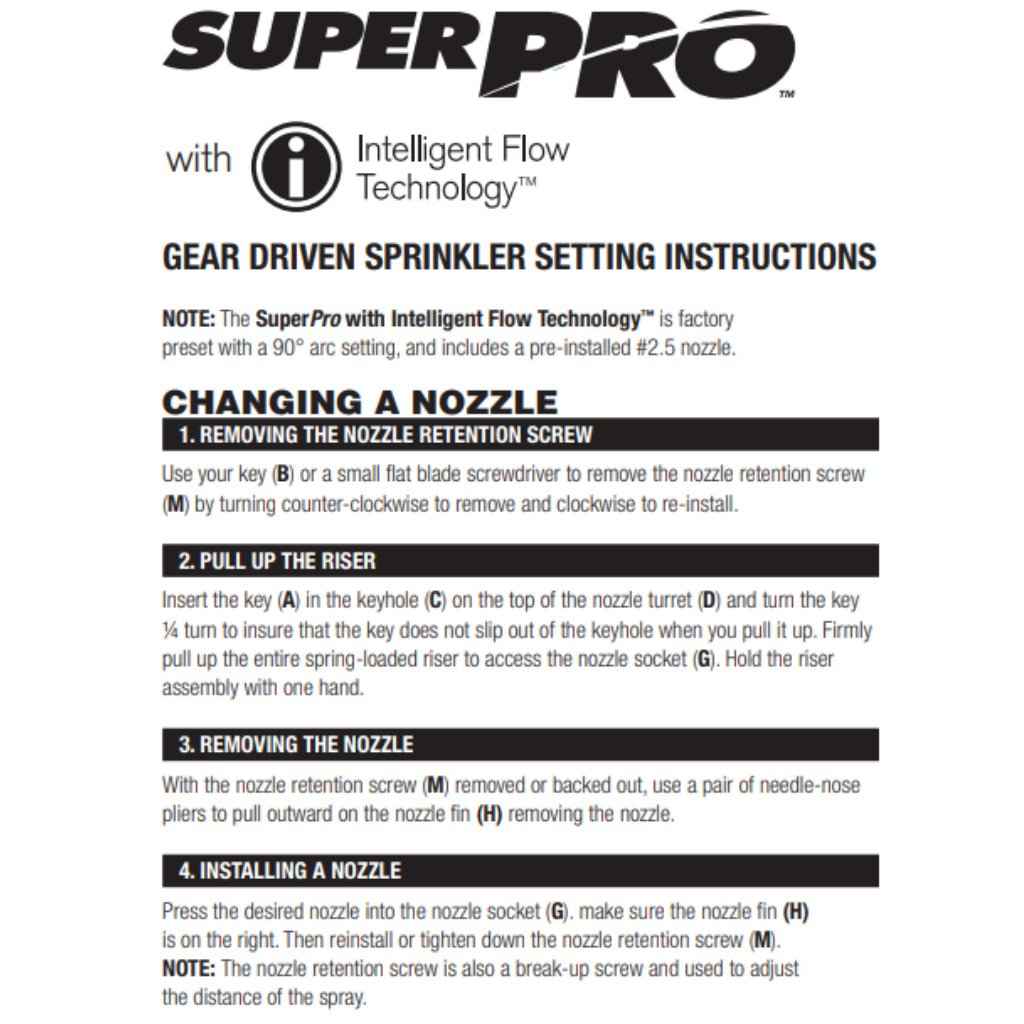

Take a peek @ images for more info
Video
Description
K-Rain Super Pro with Intelligent Flow Gear Driven Sprinkler
Control the flow. Command the day.
SuperPro rotors feature patented Intelligent Flow Technology® that simultaneously and proportionately reduces distance and water flow up to 50%.
They’re super reliable, versatile, efficient and packed with all the best features to save you time and money.
SuperPro® delivers matched precipitation, eliminates dry spots and provides better zone performance. Water flow can be turned off during nozzle installation or adjustment, with the riser remaining in the popped-up position.
Features & Benefits
- Patented Intelligent Flow Technology® – allows distance and water flow to be reduced simultaneously and proportionately – up to 50%. Superior uniformity. Saves water up to 30%. Water flow can be turned off during installation or adjustment. Riser remains in a popped up position for quick nozzle changes.

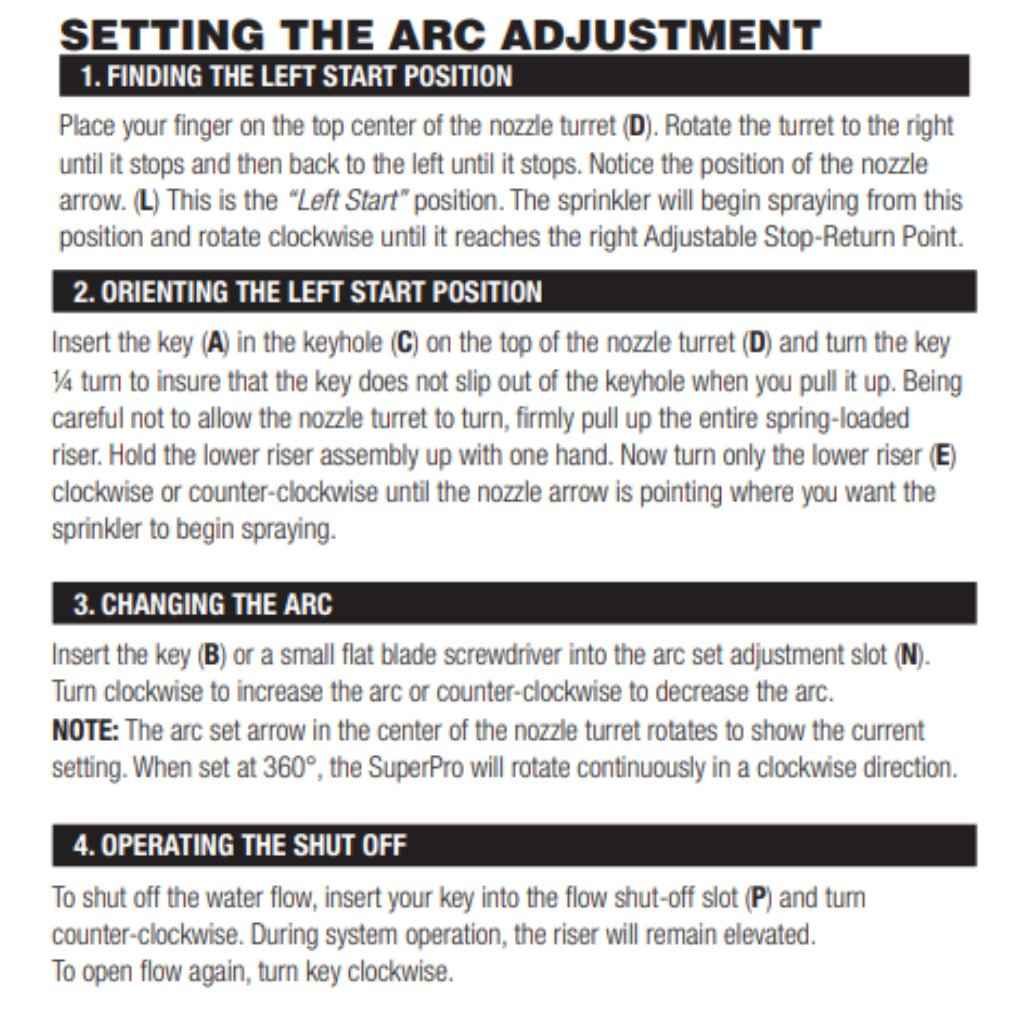

- Patented Easy Arc Set – simplified arc set allows for wet or dry adjustment in seconds
- Adjustable or Continuous Rotation – provides a full range of adjustment from 40° to continuous 360°
- Arc Memory Clutch – prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced out of adjustment
- Time Proven Patented Reversing Mechanism – assures continuous reverse and return… over a 35-year history
- Ratcheting Riser – allows for easy adjustment of your left starting position with a simple turn of the riser
- Rubber Cover – seals out dirt and increases product durability
- Optional Check Valve – prevents low head drainage
- Rugged Stainless Steel Spring – .093 gauge 302 stainless steel spring extends the life of the rotor
Specifications
- Inlet – 3/4" / 19 mm threaded NPT
- Arc Adjustment Range – 40° to continuous 360°
- Flow Range – 4.2 – 42 litres per minute
- Pressure Rating – 1.4 – 4.8 BAR
- Precipitation Rate – 5.3 – 29.7 mm/hr (depending on spacing and nozzle used)
- Retracted Height – 7 1/2" / 19 cm
- Riser Height – 4 1/4" / 108 mm
- Recommended Spacing – 8.5 – 13.4 m
- Radius – 7.9 – 14 m
- Nozzle Trajectory – 26°
- Low Angle Nozzle Trajectory – 12°
- Standard and low angle nozzles included

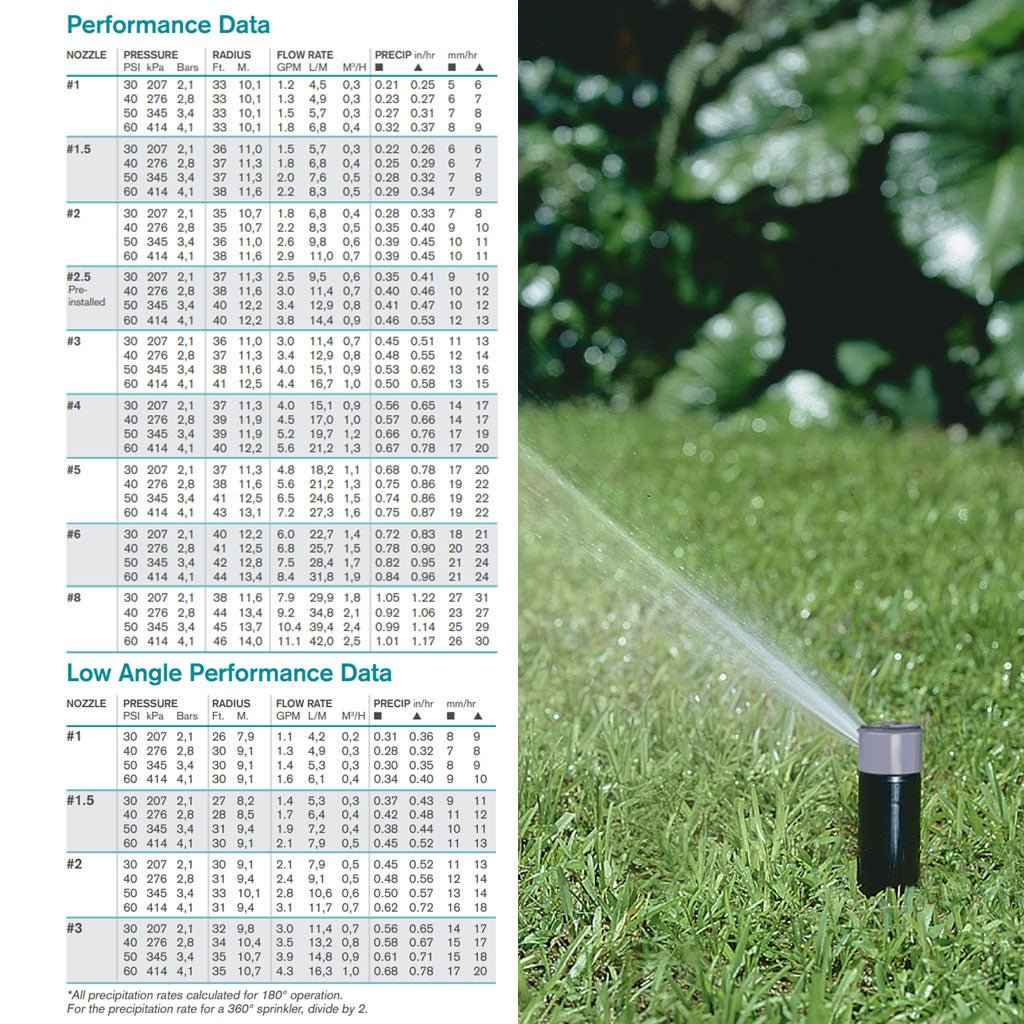

Performance Data
Standard Nozzles
No Adjustment to nozzles - Dark blue
-30% Adjustment to nozzles - Medium Blue
| Nozzle | BAR | Spray Radius (m) | Flow Rate (l/m) | Precip. (mm/hr) | Spray Radius (m) | Flow Rate (l/m) | Precip. (mm/hr) |
| #1.0 | 2.1 | 10.1 | 4.5 | ■ 5 | ▲ 6 | 6.4 | 3.2 | ■ 8 | ▲ 9 |
| 2.8 | 10.1 | 4.9 | ■ 6 | ▲ 7 | 6.6 | 3.4 | ■ 8 | ▲ 10 | |
| 3.4 | 10.1 | 5.7 | ■ 7 | ▲ 8 | 6.6 | 4.0 | ■ 10 | ▲ 11 | |
| 4.1 | 10.1 | 6.8 | ■ 8 | ▲ 9 | 6.8 | 4.8 | ■ 12 | ▲ 13 | |
| #1.5 | 2.1 | 11.0 | 5.7 | ■ 6 | ▲ 7 | 7.7 | 4.0 | ■ 8 | ▲ 9 |
| 2.8 | 11.3 | 6.8 | ■ 6 | ▲ 7 | 7.9 | 4.8 | ■ 9 | ▲ 11 | |
| 3.4 | 11.3 | 7.6 | ■ 7 | ▲ 8 | 7.9 | 5.3 | ■ 10 | ▲ 12 | |
| 4.1 | 11.6 | 8.3 | ■ 7 | ▲ 9 | 8.1 | 5.8 | ■ 11 | ▲ 12 | |
| #2.0 | 2.1 | 10.7 | 6.8 | ■ 7 | ▲ 8 | 7.5 | 4.8 | ■ 10 | ▲ 12 |
| 2.8 | 10.7 | 8.3 | ■ 9 | ▲ 10 | 7.5 | 5.8 | ■ 13 | ▲ 15 | |
| 3.4 | 11.0 | 9.8 | ■ 10 | ▲ 11 | 7.7 | 6.9 | ■ 14 | ▲ 16 | |
| 4.1 | 11.6 | 11.0 | ■ 10 | ▲ 11 | 8.1 | 7.7 | ■ 14 | ▲ 16 | |
| #2.5 | 2.1 | 11.3 | 9.5 | ■ 9 | ▲ 10 | 7.9 | 6.6 | ■ 13 | ▲ 15 |
| Pre- | 2.8 | 11.6 | 11.4 | ■ 10 | ▲ 12 | 8.1 | 8.0 | ■ 15 | ▲ 17 |
| Installed | 3.4 | 12.2 | 12.9 | ■ 10 | ▲ 12 | 8.5 | 9.0 | ■ 15 | ▲ 17 |
| 4.1 | 12.2 | 14.4 | ■ 12 | ▲ 13 | 8.5 | 10.1 | ■ 17 | ▲ 19 | |
| #3.0 | 2.1 | 11.0 | 11.4 | ■ 11 | ▲ 13 | 7.7 | 8.0 | ■ 16 | ▲ 19 |
| 2.8 | 11.3 | 12.9 | ■ 12 | ▲ 14 | 7.9 | 9.0 | ■ 17 | ▲ 20 | |
| 3.4 | 11.6 | 15.1 | ■ 13 | ▲ 16 | 8.1 | 10.6 | ■ 19 | ▲ 22 | |
| 4.1 | 12.5 | 16.7 | ■ 13 | ▲ 15 | 8.8 | 11.7 | ■ 18 | ▲ 21 | |
| #4.0 | 2.1 | 11.3 | 15.1 | ■ 14 | ▲ 17 | 7.9 | 10.6 | ■ 20 | ▲ 24 |
| 2.8 | 11.9 | 17.0 | ■ 14 | ▲ 17 | 8.3 | 11.9 | ■ 21 | ▲ 24 | |
| 3.4 | 11.9 | 19.7 | ■ 17 | ▲ 19 | 8.3 | 13.8 | ■ 24 | ▲ 28 | |
| 4.1 | 12.2 | 21.2 | ■ 17 | ▲ 20 | 8.5 | 14.9 | ■ 24 | ▲ 28 | |
| #5.0 | 11.3 | 18.2 | ■ 17 | ▲ 20 | 7.9 | 12.7 | ■ 25 | ▲ 28 | |
| 11.6 | 21.2 | ■ 19 | ▲ 22 | 8.1 | 14.9 | ■ 27 | ▲ 31 | ||
| 12.5 | 24.6 | ■ 19 | ▲ 22 | 8.8 | 17.2 | ■ 27 | ▲ 31 | ||
| 13.1 | 27.3 | ■ 19 | ▲ 22 | 9.2 | 19.1 | ■ 27 | ▲ 32 | ||
| #6.0 | 2.1 | 12.2 | 22.7 | ■ 18 | ▲ 21 | 8.5 | 15.9 | ■ 26 | ▲ 30 |
| 2.8 | 12.5 | 25.7 | ■ 20 | ▲ 23 | 8.8 | 18.0 | ■ 28 | ▲ 33 | |
| 3.4 | 12.8 | 28.4 | ■ 21 | ▲ 24 | 9.0 | 19.9 | ■ 30 | ▲ 34 | |
| 4.1 | 13.4 | 31.8 | ■ 21 | ▲ 24 | 9.4 | 22.3 | ■ 30 | ▲ 35 | |
| #8.0 | 2.1 | 11.6 | 29.9 | ■ 27 | ▲ 31 | 8.1 | 21.0 | ■ 38 | ▲ 44 |
| 2.8 | 13.4 | 34.8 | ■ 23 | ▲ 27 | 9.4 | 24.4 | ■ 33 | ▲ 38 | |
| 3.4 | 13.7 | 39.4 | ■ 25 | ▲ 29 | 9.6 | 27.6 | ■ 36 | ▲ 41 | |
| 4.1 | 14.0 | 42.0 | ■ 26 | ▲ 30 | 9.8 | 29.4 | ■ 37 | ▲ 42 |
Low Angle Performance Nozzles
No Adjustment to nozzles - Dark blue
-30% Adjustment to nozzles - Medium Blue
| Nozzle | BAR | Spray Radius (m) | Flow Rate (l/m) | Precip. (mm/hr) | Spray Radius (m) | Flow Rate (l/m) | Precip. (mm/hr) |
| #1.0 | 2.1 | 7.9 | 4.2 | ■ 8 | ▲ 9 | 5.6 | 2.9 | ■ 11 | ▲ 13 |
| 2.8 | 9.1 | 4.9 | ■ 7 | ▲ 8 | 6.4 | 3.4 | ■ 10 | ▲ 12 | |
| 3.4 | 9.1 | 5.3 | ■ 8 | ▲ 9 | 6.4 | 3.7 | ■ 11 | ▲ 13 | |
| 4.1 | 9.1 | 6.1 | ■ 9 | ▲ 10 | 6.4 | 4.2 | ■ 12 | ▲ 15 | |
| #1.5 | 2.1 | 8.2 | 5.3 | ■ 9 | ▲ 10 | 5.8 | 3.7 | ■ 13 | ▲ 16 |
| 2.8 | 8.5 | 6.4 | ■ 11 | ▲ 12 | 6.0 | 4.5 | ■ 15 | ▲ 17 | |
| 3.4 | 9.4 | 7.2 | ■ 10 | ▲ 11 | 6.6 | 5.0 | ■ 14 | ▲ 16 | |
| 4.1 | 9.1 | 7.9 | ■ 11 | ▲ 13 | 6.4 | 5.6 | ■ 16 | ▲ 19 | |
| #2.0 | 2.1 | 9.1 | 7.9 | ■ 11 | ▲ 13 | 6.4 | 5.6 | ■ 16 | ▲ 19 |
| 2.8 | 9.4 | 9.1 | ■ 12 | ▲ 14 | 6.6 | 6.4 | ■ 17 | ▲ 20 | |
| 3.4 | 10.1 | 10.6 | ■ 13 | ▲ 14 | 7.0 | 7.4 | ■ 18 | ▲ 21 | |
| 4.1 | 9.4 | 11.7 | ■ 16 | ▲ 18 | 6.6 | 8.2 | ■ 22 | ▲ 26 | |
| #3.0 | 2.1 | 9.8 | 11.4 | ■ 14 | ▲ 17 | 6.8 | 8.0 | ■ 20 | ▲ 24 |
| 2.8 | 10.4 | 13.2 | ■ 15 | ▲ 17 | 7.3 | 9.3 | ■ 21 | ▲ 24 | |
| 3.4 | 10.7 | 14.8 | ■ 15 | ▲ 18 | 7.5 | 10.3 | ■ 22 | ▲ 26 | |
| 4.1 | 10.7 | 16.3 | ■ 17 | ▲ 20 | 7.5 | 11.4 | ■ 25 | ▲ 28 |
